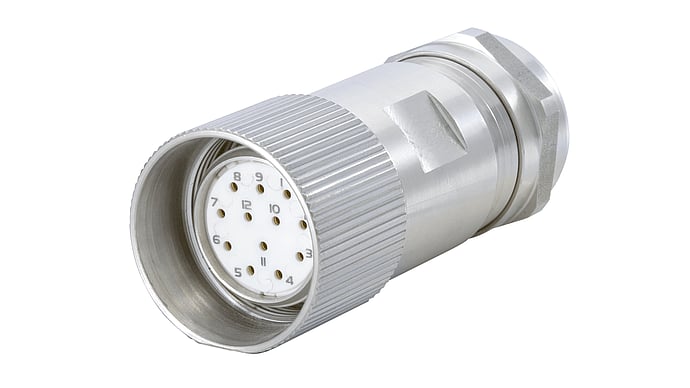

Housing M23 Signal cable connector INOX
CHF 69.30 - CHF 118.30
Description
Housing M23 Signal cable connector INOX (only housing, excl. insert and contacts)
Special applications require special solutions. This also applies to circular connectors made of stainless steel. They are used wherever the ambient conditions are extremely harsh or the hygienic requirements are particularly high.
.
// Signal connector M 16 INOX
// Signal connectors M 23 INOX
// M 23 INOX power connectors
// Montagewerkzeug 7.010.900.127 wird benötigt
.
Weitere, nicht publizierte HUMMEL Products und Ausführungen auf Anfrage.
Technical data
- Housing design: Cable
- Housing material: Stainless steel 1.4404 (AISI 316)
- Version: Screw
- Internal thread on plug-in side: M23 x 1

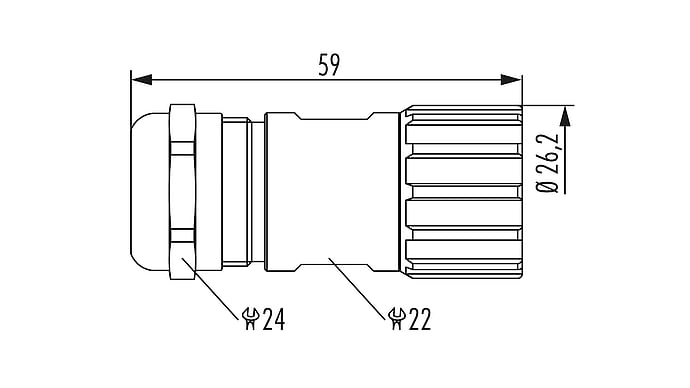

- Knurled nut Ø on plug-in side: 26.2 mm
- Locking type: Screw fastening
- Seal type: O-ring
- Material seals/o-rings: FKM (FPM)
- Width across flats (SW1/SW2): 24/22 mm
- Cable diameter: 3 -7 mm / 5-10 mm / 7 - 12 mm / 10 - 14 mm
- Temperature range: -40°C...+125°C
- Protection class: IP67 / 69K
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
.
Fehler und technische Änderungen vorbehalten
Additional information
| Circular connector | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
| More | ||||||||
|
||||||||
Data sheets
| Catalog excerpt INOX | PDF(120.51 KB) |
|---|
