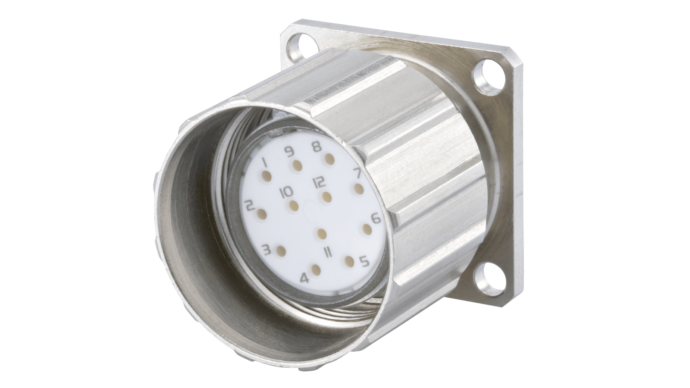

Housing M23 signal device connector with knurled nut
CHF 28.25 excl. VAT, plus shipping costs
Description
M23 appliance coupler with knurled nut (housing only, excl. insert and contacts)
.
This proven and universally applicable connector system is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited
almost unlimited possibilities.
.
// numerous housing designs
// wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener
.
Further, not published HUMMEL products and designs on request.
Technical data
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Mounting type: Front wall
- Version: with knurled nut
- Internal thread on plug-in side: M23 x 1
- Knurled nut Ø on plug-in side: 27.2 mm
- Locking type: Screw fastening
- Shielding: unshielded
- Material seals/o-rings: NBR
- Coding position: Coding cannot be positioned

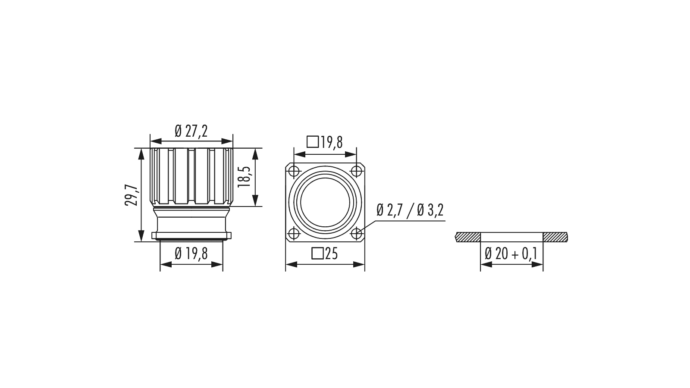

- Installation dimensions: Ø 20 + 0.1 mm
- Flange: 25 x 25 mm
- Hole spacing: 19.8 mm
- Hole diameter: 4x Ø 3.2 mm / 4x Ø 2.7 mm
- Protection class: IP67 / 69K
- Temperature range: -40°C...+125°C
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
// 7.439.XXX.XXX nur Stift-Einsatz möglich
// dieser Steckverbinder benötigt Montagewerkzeug Art.Nr. 7010900101
Subject to errors and technical changes
