Housing M23 right-angle connector EMC orientable
CHF 33.65 - CHF 33.85
Description

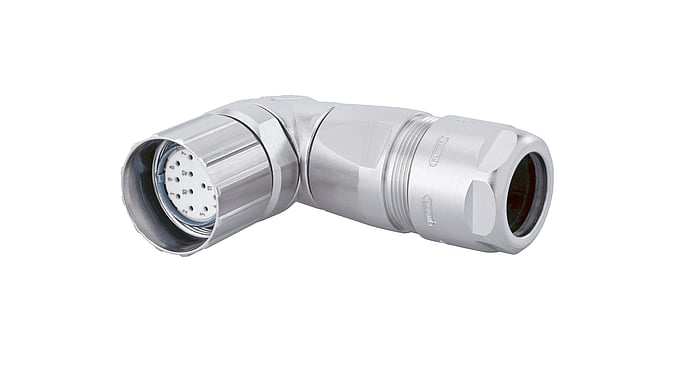

M 23 right-angle connector EMC, orientable (Housing only, excl. insert and contacts)
This proven and universally applicable connector system is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited possibilities.
.
// Numerous housing designs
// Wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener
.
This is how the HUMMEL system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Design: EMC, orientable
- Internal thread on plug-in side: M23 x 1
- Knurled nut Ø on plug-in side: 27.2 mm
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Cable diameter: 7-12 mm / 11-17 mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
