MEAN WELL high-performance power supply units System solutions

As the high-end markets are currently looking for an integrated 2-in-1 solution for ultra-high power and energy management, MEAN WELL is developing complete, flexible and resilient system solutions for various industries. It can deliver 128 kW+ ultra-high power and has a high efficiency of 94.5% and high reliability to meet the most challenging power requirements.

The system power solutions developed by MEAN WELL can be used in very high power consumption application scenarios such as electric vehicle charging, industrial automation, stage lighting, electronic product burn-in systems, UV curing systems, telecom/data communication systems and more. To facilitate industrial automation, CMU2R-C is integrated into the solution to individually support communication with PMbus, CANBus or Modbus protocols and remotely monitor and control the critical electrical parameters of system performance via wired and wireless networks.

ADVANTAGES OF THE MEAN WELL SYSTEM SOLUTIONS

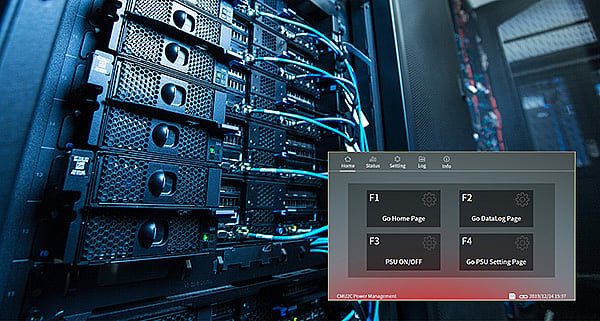

Integrated solutions

• Simplified energy management through digital communication
• CMU2R-C for monitoring and setting PSU key parameters

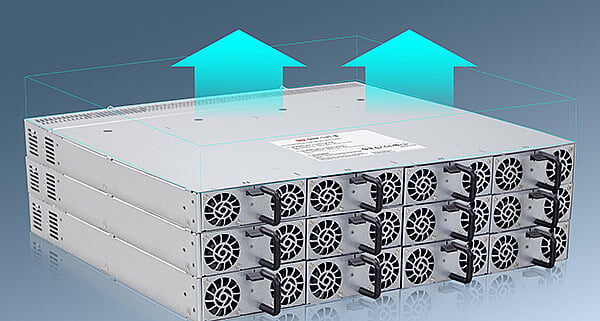

Output power Easily expandable

• 12.8k - 128kW power range, configurable output power according to the power requirements of industries and applications

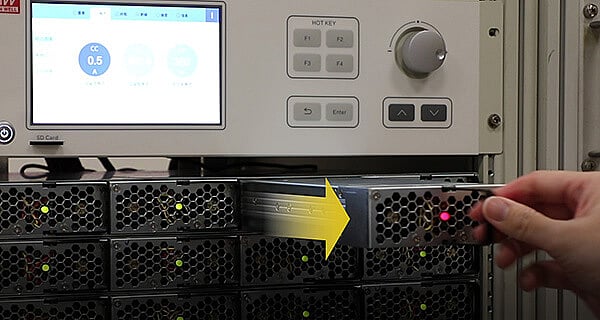

Easy installation and maintenance

• The power supply unit supports the hot-plug function: quick installation and replacement of the power supply unit.

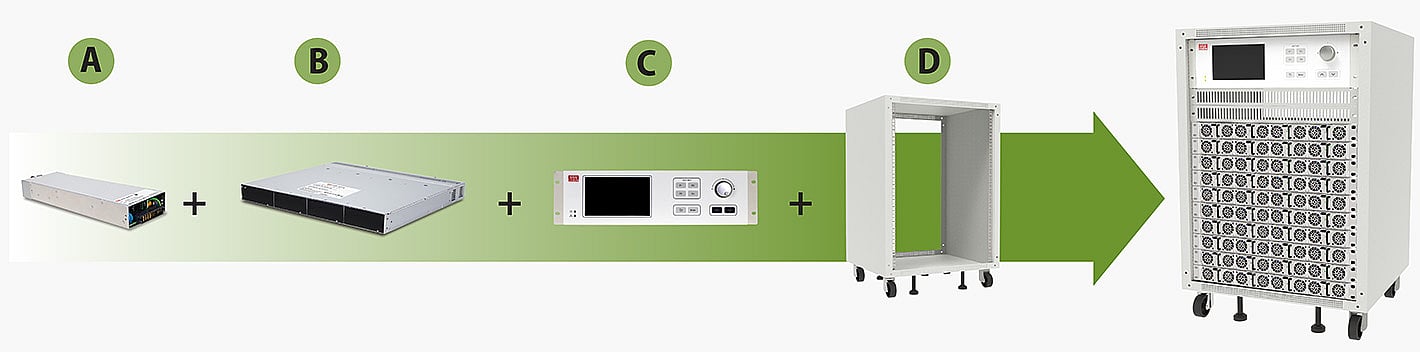

COMBINATIONS OF SOLUTIONS

FURTHER SOLUTION COMBINATIONS

APPLICATION EXAMPLE

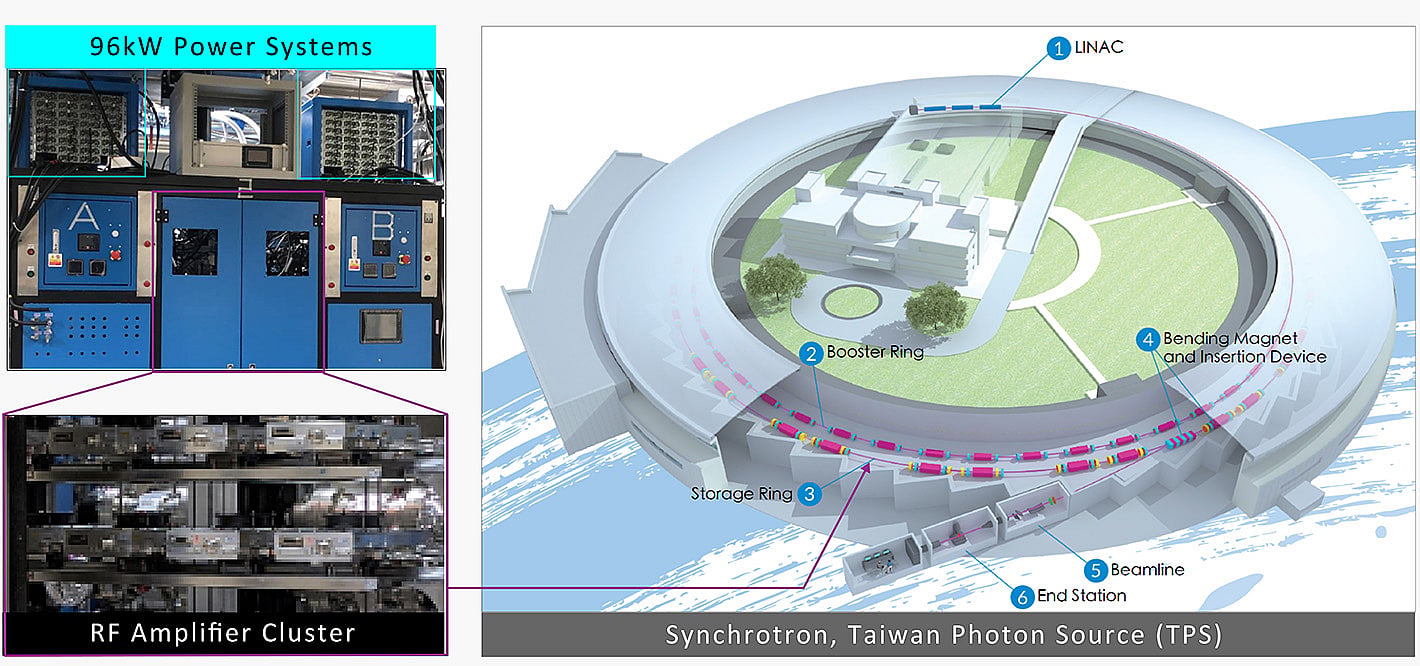

Super-Power System for Synchrotron of Taiwan Photon Source (TPS)

Enormous amounts of energy are required to operate the synchrotron (particle accelerator). A well-known research institute in Taiwan therefore opted for the energy solution of the MEAN WELL system. First, power is supplied to the RF amplifier cluster to generate high-frequency current, then high-frequency current is fed into the storage ring to make the electrons move at almost the speed of light. When all energy systems are operating simultaneously, the total output power reaches 800 kW.
