3192W Power supply unit and battery charger 24V/133A, for rack mounting
CHF 610.10 excl. VAT, plus shipping costs
Item no:
NCP-3200-24
In stock: Available to order
Packaging ex works:
4 piece
5+ CHF 610.10 CHF 579.60 (4%save)
10+ CHF 579.60 CHF 555.20 (8%save)
20+ CHF 555.20 CHF 540.00 (11%save)
Description

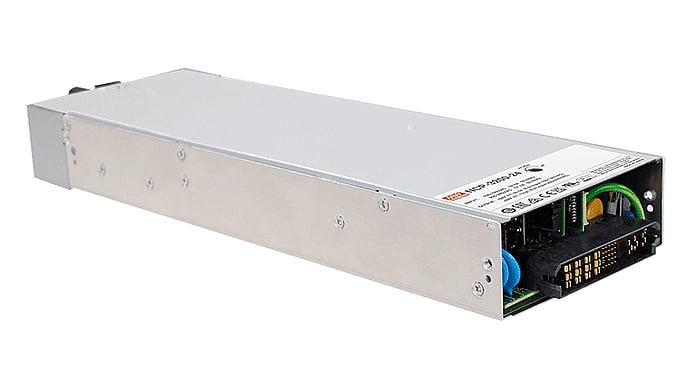

NCP-3200-24 is a 3.2kW front end power supply and battery charger for rack installation. Installed in the DHP-1UT-B rack, up to 4 NCP-3200-24 units can be operated in parallel per rack. Furthermore, up to 10 racks can be connected in parallel, allowing a total output of 128kW. With the built-in hot swap function, redundant operation can also be implemented without any problems.
High power system solutions
Technical data
- Input voltage 90 to 264Vac
- Can be used as a power supply unit or charger, adjustable via PMBus or SBP-001
- 2- and 3-stage charging curves integrated, programmable via SBP-001
- Efficiency 94.5
- with active PFC
- For rack mounting in a rack DHP-1UT-B
- PMBus integrated
- Hot swap capable
- Active current sharing up to 12.8kW per rack, up to 128kW with 10 racks
- DC OK signal and overtemperature alarm signal (OTP)

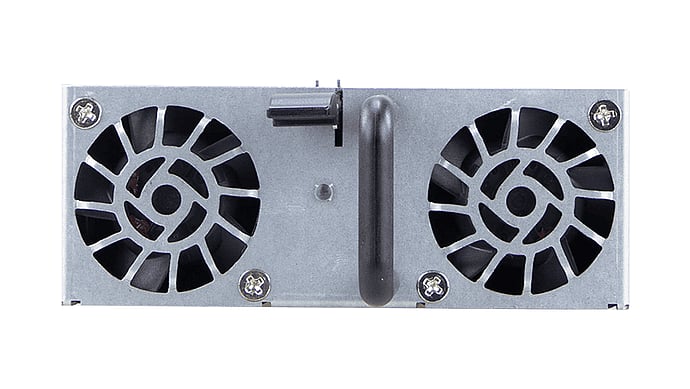

- Air cooling with integrated controlled DC fan
- UL/EN/IEC 62368-1 certified
- Operating temperature range from -40°C to +70°C
- Dimensions 325 x 107 x 41mm (L x W x H)
