Housing M16 angled connector orientable
CHF 36.15 - CHF 38.70
Description

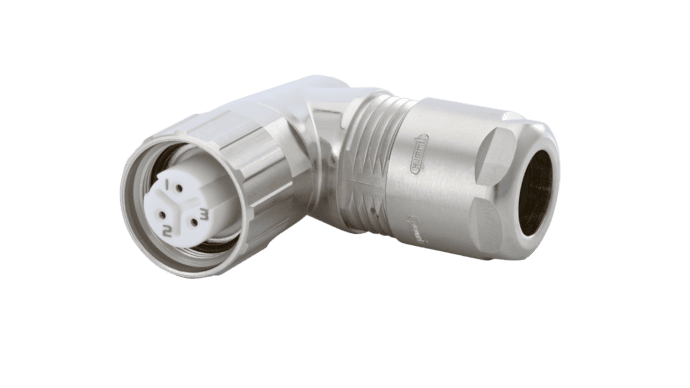

M 16 angled connector, orientable (Housing only, excl. insert and contacts)
The M 16 plug-in system from HUMMEL is traditionally very popular with users. The reason for this is its high performance with minimal space requirements.
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools
.
This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Design: orientable, screw
- Internal thread on plug-in side: M16 x 0.75
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 18/17 mm
- Cable diameter: 3-6mm / 5-9mm / 8-11mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
Subject to technical changes
Additional information
| Circular connector | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| 7.831.300.000 3-6mm | PDF(83.95 KB) |
|---|---|
| 7,831,400,000 5-9mm | PDF(84.1 KB) |
| 7,831,500,000 8-11mm | PDF(84.23 KB) |
| Assembly instructions M16 angled plug orientable | PDF(89.36 KB) |
Accessories
-
7003910102
M16 contact insert 10-pin 7.003.910.102CHF 3.4015 Available immediately -
7003910101
M16 contact insert 10-pin 7.003.910.101CHF 3.4020 Available immediately -
7003983102
M16 crimp insert (w) 3-pin (3x 2mm), without contactsCHF 2.85181 Available immediately -
7003983101
M16 crimp insert (m) 3-pin (3x 2mm), without contactsCHF 2.8525 Available immediately -
7003908102
M16 crimp insert (w) 8-pin (4+3+PE) 600V without contactsCHF 7.7040 Available immediately -
7003908101
M16 crimp insert (m) 8-pin (4+3+PE), 600V without contactsCHF 7.702 Available immediately -
7003943102
M16 contact insert 4+3+PE, 320V socketCHF 7.1539 Available immediately -
7003943101
M16 contact insert 4+3+PE, 320V pinCHF 7.1512 Available immediately
