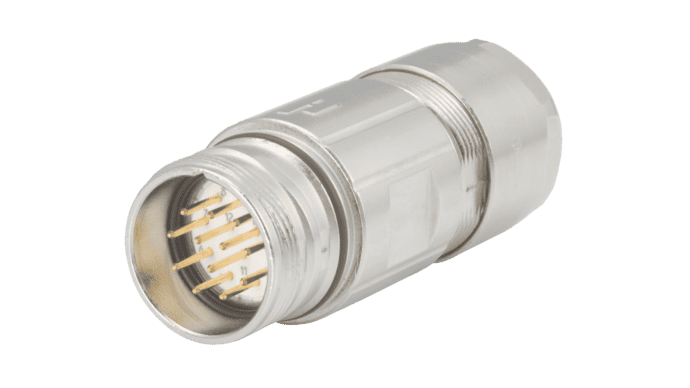

Housing M23 coupling connector TWILOCK / TWILOCK-S
CHF 17.60 - CHF 26.05
Description
M23 coupling connector TWILOCK / TWILOCK-S (Housing only, excl. insert and contacts)
This proven and universally applicable connector system from HUMMEL is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited possibilities.
.
// zahlreiche Gehäusebauformen
// große Variantenvielfalt
// TWILOCK / TWILOCK-S Schnellverschluss
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// riesige Anzahl von Kombinationsmöglichkeiten
// einheitliche Konfektionierung
// einfache Disposition
// minimierte Lagerhaltung
// Montage und Demontage ohne Spezialwerkzeug
.
This is how the system works:
// Für eine der Steckverbinderserie entsprechend der Applikation und der gewünschten Polzahl entscheiden.
// Gehäusebauformen auswählen (Kabelsteckverbinder, Kupplung, Winkel, Gerätestecker) mit dem gewünschten Verschluss-System (Schraubverschluss, TWILOCK, TWILOCK S)
// Passenden Einsatz wählen (Stifteinsatz oder Buchseneinsatz) >see accessories
// Zugehörige Kontakte (Stifte oder Buchsen) in der benötigten Anzahl wählen >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: Coupling
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Version: Screw
- Male thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 24 mm
- Cable diameter: 3-7 mm / 7-12 mm / 11-17 mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
Subject to errors and technical changes
Additional information
| Circular connector | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| 7.206.400.000 3 - 7mm | PDF(101.04 KB) |
|---|---|
| 7.206.500.000 7 - 12mm | PDF(101.17 KB) |
| 7.206.600.000 11 - 17mm | PDF(100.92 KB) |
| 7.266.400.00S 3 - 7mm TWILOCK-S | PDF(99.45 KB) |
| 7.266.500.00S 7 - 12mm TWILOCK-S | PDF(101.46 KB) |
| 7.266.600.00S 11 - 17mm TWILOCK-S | PDF(101.29 KB) |
| Assembly instructions M23 cable connector / coupling connector | PDF(90.94 KB) |
| Catalog excerpt M23 signal coupling plug | PDF(163.36 KB) |
