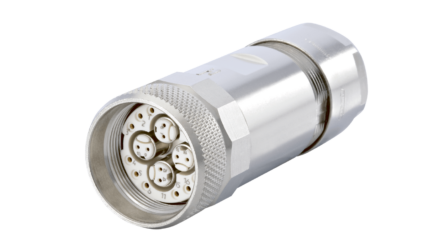

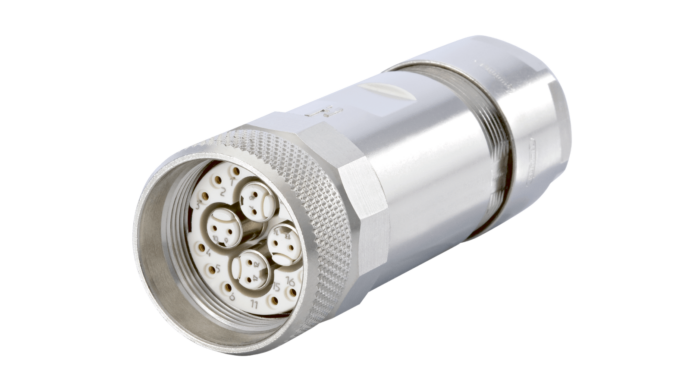

Housing M23 Profinet cable connector
CHF 38.40 excl. VAT, plus shipping costs
Description
M23 Profinet plug-in connector (housing only, excl. insert and contacts)
This connector system is capable of transmitting the highest data rates up to the gigabit range. The M23 Profinet is robust, safe and compact. It is designed for use in harsh industrial environments.
.
// Hybrid connector for single-cable solutions
// Four Twinax inserts for data transmission
// Five separate shields prevent crosstalk
// Highest density in M 23 housing
.
Further, unpublished HUMMEL products and versions on request.
Technical data
- Housing design: Cable
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Version: Screw
- Internal thread on plug-in side: M23 x 1
- Knurled nut Ø on plug-in side: 27 mm
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR

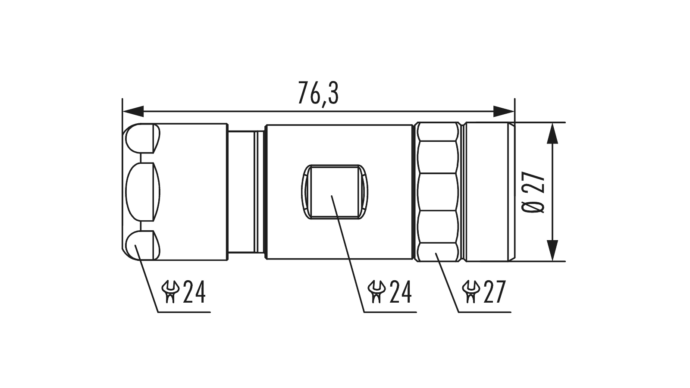

- Width across flats (SW1/SW2): 24 / 24 / 27 mm
- Cable diameter: 11-17 mm
- Temperature range: -40°C to +125°C
- Protection class: IP67
- Suitable contact inserts: 7003920102
Errors and technical changes reserved.
Additional information
| Circular connector | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| Data sheet | PDF(195.93 KB) |
|---|---|
| Catalog excerpt | PDF(124.55 KB) |
