Housing M23 cable connector Power TWILOCK/TWILOCK-S
CHF 27.00 - CHF 44.75
Description

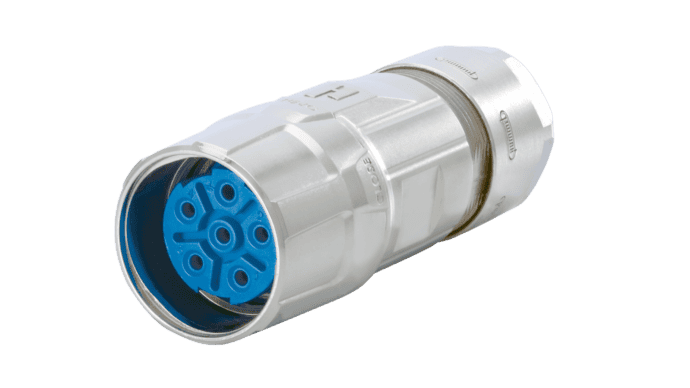

M 23 TWILOCK/TWILOCK-S cable connector (Housing only, excl. insert and contacts)
The classic HUMMEL M 23 power connector is able to cover a wide range of applications. With 6-, 8- or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.
.
// High power transmission
// Screw or TWILOCK / TWILOCK-S quick-release fastener
// Numerous housing designs
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools
.
This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: Cable
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Version: TWILOCK / TWILOCK-S
- Internal thread on plug-in side: M23 x 1
- TWILOCK/TWILOCK-S-Ø plug-in side: 28 mm
- Locking type: Screw fastening
- Shielding: shielded
- Seal type: O-ring
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 24/24 mm
- Cable diameter: 7-12 mm / 11-17 mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
Subject to technical changes
Additional information
| Circular connector | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| 7.556.500.000 7 - 12mm TWILOCK | PDF(109.81 KB) |
|---|---|
| 7.556.600.000 11 - 17mm TWILOCK | PDF(109.81 KB) |
| 7.556.500.00S 7 - 12mm TWILOCK-S | PDF(110.27 KB) |
| 7.556.600.00S 11 - 17mm TWILOCK-S | PDF(110.28 KB) |
| Assembly instructions M23 cable connector / coupling connector | PDF(90.94 KB) |
