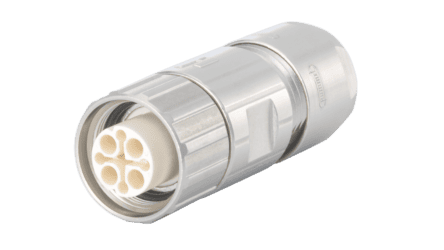

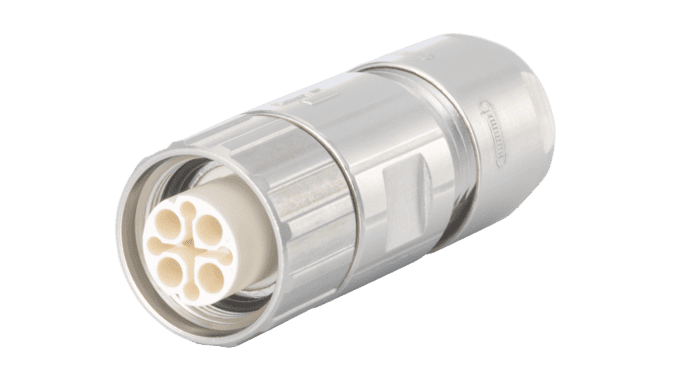

Housing M16 cable connector long version
CHF 22.60 excl. VAT, plus shipping costs
Description
M16 cable connector, long version (Housing only, excl. insert and contacts)
The M 16 plug-in system from HUMMEL is traditionally very popular with users. The reason for this is its high performance with minimal space requirements.
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools
.
This is how the system works:
// Choose one of the connector series according to the application and the required number of poles. (M 12 Power, M 16, M 23 Profinet, M 23 RJ 45, M 23 Signal, M 27 Signal, M 23 Power / Hybrid, M 40 Power)
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: Cable
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Version: Screw
- Internal thread on plug-in side: M16 x 0.75
- Knurled nut Ø on plug-in side: 19.7 mm
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 18/18 mm
- Cable diameter: 3-6mm / 5-9mm / 8-11mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
Additional information
| Circular connector | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| 7.811.300.000 3-6mm, long version | PDF(88.13 KB) |
|---|---|
| 7.811.400.000 5-9mm, long version | PDF(87.96 KB) |
| 7.811.500.000 8-11mm, long version | PDF(88.11 KB) |
Accessories
-
7003908101
M16 crimp insert (m) 8-pin (4+3+PE), 600V without contactsCHF 7.702 Available immediately -
7003908102
M16 crimp insert (w) 8-pin (4+3+PE) 600V without contactsCHF 7.7040 Available immediately -
7003910101
M16 contact insert 10-pin 7.003.910.101CHF 3.4020 Available immediately -
7003910102
M16 contact insert 10-pin 7.003.910.102CHF 3.4015 Available immediately -
7003983101
M16 crimp insert (m) 3-pin (3x 2mm), without contactsCHF 2.8525 Available immediately -
7003983102
M16 crimp insert (w) 3-pin (3x 2mm), without contactsCHF 2.85181 Available immediately
