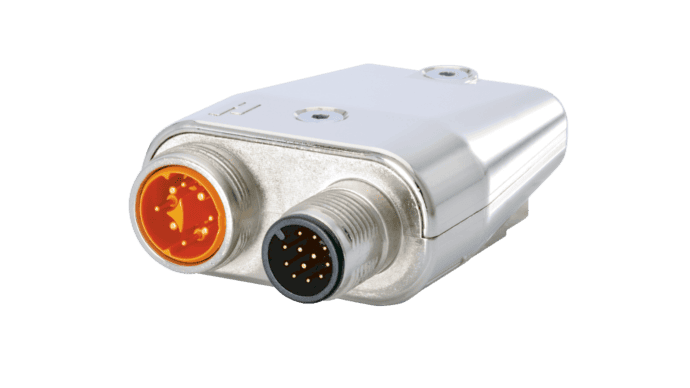

Housing M16 cable connector TWINTUS M16/M12 flange 25 x 25mm
CHF 0.00 excl. VAT, plus shipping costs
Description
M 16 cable connector TWINTUS M16/M12 for small drives (Housing only, excl. insert and contacts)
The M 16 plug-in system from HUMMEL is traditionally very popular with users. The reason for this is its high performance with minimal space requirements.
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools
.
This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: TWINTUS M16/M12
- Housing material: aluminum alloy, copper-zinc alloy, die-cast zinc
- Housing surface material: blank / nickel-plated / black
- Version: M16 / M12
- Male thread on plug-in side: M12 x 1, M16 x 0.75
- Locking type: Screw fastening
- Shielding: unshielded
- Seal type: Molded seal
- Material seals/o-rings: FKM (FPM), NBR
- Flange: 25 x 25 mm
- Hole spacing: 19.8 mm
- Hole diameter: 4x Ø 2.7 mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
Subject to technical changes
