Housing M23 cable connector
CHF 14.35 - CHF 16.45
Description

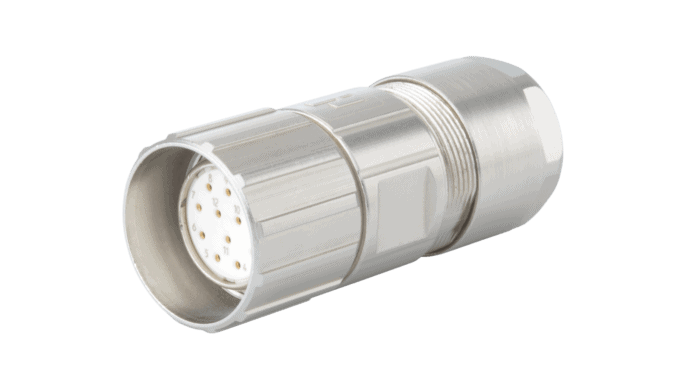

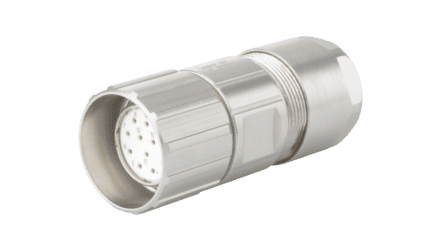

M 23 cable connector (Housing only, excl. insert and contacts)
This proven and universally applicable connector system from HUMMEL is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited possibilities.
.
// Numerous housing designs
// Wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools
.
This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: Cable
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Application: Socket
- Version: Screw
- Internal thread on plug-in side: M23 x 1
- Knurled nut Ø on plug-in side: 27.2 mm
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 24 mm
- Cable diameter: 3-7 mm / 7-12 mm / 11-17 mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
Subject to technical changes
Additional information
| Circular connector | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| 7.106.400.000 3 - 7mm | PDF(97.49 KB) |
|---|---|
| 7.106.500.000 7 - 12mm | PDF(97.63 KB) |
| 7.106.600.000 11 - 17mm | PDF(97.36 KB) |
| Assembly instructions M23 cable connector / coupling connector | PDF(90.94 KB) |
