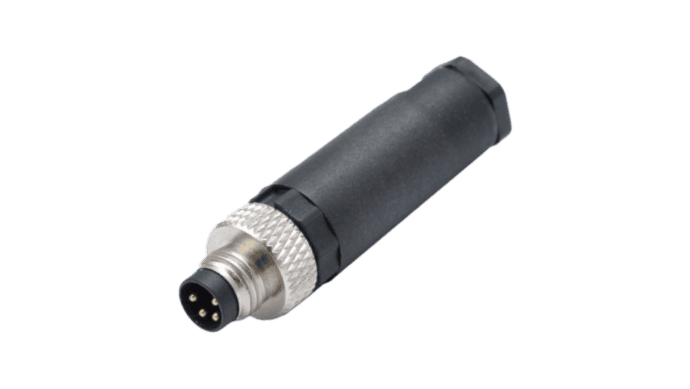

M8 plug connector plug SZ SIGNAL
CHF 5.60 - CHF 5.90
Description
M8 connector plugs from SZ SIGNAL
SZ Signal's product range includes cost-effective circular connectors from the M5, M8, M9, M12, M16, M23, M40, 7/8 ", MINI-Din, MIL-C-5015, etc. series. A convenient selection of adapters, Y-splitters, distribution boxes and other accessories completes the range. All SZ Signal connectors can be supplied as standard catalog cables or as customer-specific cable assemblies with 100% product testing. In addition to the overmoulded pre-assembled cables, SZ-Signal also supplies straight and angled field-mountable connectors with screw terminals in plastic or shielded metal versions as well as fieldbus cables in all code variants. Other non-published SIGNAL products and versions are available on request.
Version: Straight
Material: metal/plastic
Number of poles: 3, 4
.
Technical data
- Closure: Screw terminal
- Connection cross-section: 0.14/.025/34mm2 (AWG 26/24/22)
- Cable outer diameter: 3 - 5.5mm
- Temperature range: -25°C to +85°C
- Plug-in cycles: >500
- Nominal voltage: 60V
- Nominal current: 3A
- Protection class: IP67 / IP68
- Contact resistance: <10mΩ
- Insulation resistance: ≥100MΩ
- Plug contact material: CuZn
- Socket contact material: CuSn
- Surface: Au
Subject to technical changes
Additional information
| Circular connector | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| 080103-01-001, 080104-01.001 | PDF(188.42 KB) |
|---|
