Housing M16 coupling connector
CHF 22.95 excl. VAT, plus shipping costs
Description

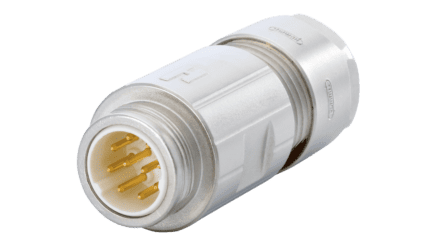

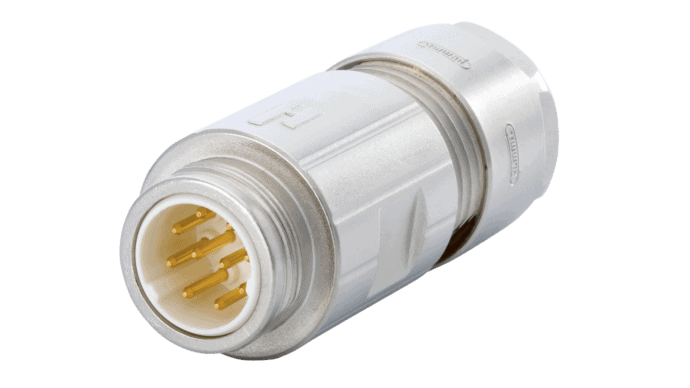

M16 coupling connector (Housing only, excl. insert and contacts)
The M 16 plug-in system from HUMMEL is traditionally very popular with users. The reason for this is its high performance with minimal space requirements.
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools
.
This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: Coupling
- Housing material: aluminum alloy, copper-zinc alloy, die-cast zinc
- Material housing surface: nickel-plated
- Version: Screw
- Male thread on plug-in side: M16 x 0.75
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 18/18 mm
- Cable diameter: 3-6mm / 5-9mm / 8-11mm
- Temperature range: -40°C to +125°C
- Protection class: IP67 / 69K
Additional information
| Circular connector | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| 3 - 6mm 7.820.300.000 | PDF(96.62 KB) |
|---|---|
| 5 - 9mm 7,820,400,000 | PDF(96.47 KB) |
| 8 - 11mm 7.820.500.000 | PDF(96.59 KB) |
| Assembly instructions M16 cable connector / coupling connector | PDF(81.03 KB) |
