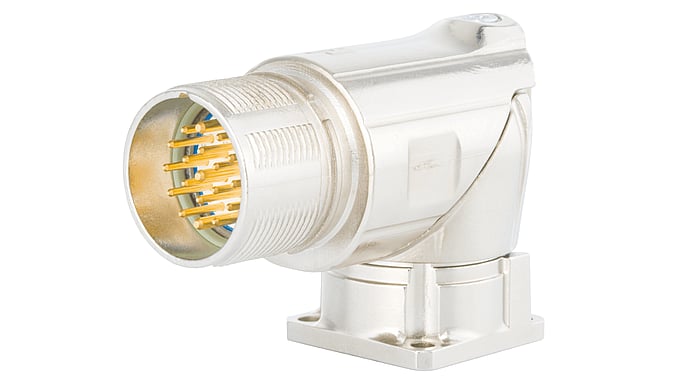

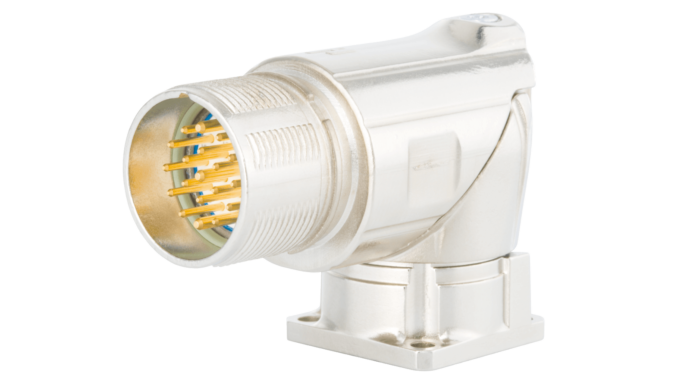

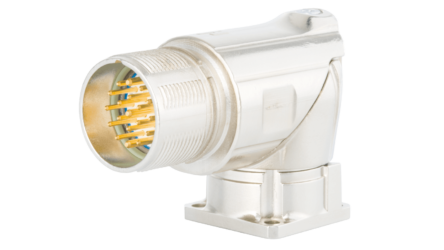

Housing M23 signal device connector angled, rotatable TWILOCK/TWILOCK-S
CHF 22.95 excl. VAT, plus shipping costs
Description
M23 signal device connector angled rotatable TWILOCK/TWILOCK-S* (housing only, excl. insert and contacts)
.
This proven and universally applicable connector system is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited
almost unlimited possibilities.
.
// numerous housing designs
// wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener (*TWILOCK-S variant is pluggable with Speedtec)
.
Further, not published HUMMEL products and versions on request.
Technical data
- Housing design: Devices angled
- Housing material: die-cast zinc
- Material housing surface: blue passivated
- Version: angled, TWILOCK / TWILOCK-S
- Male thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: unshielded
- Seal type: O-ring
- Material seals/o-rings: NBR
- Rotatable: 330°

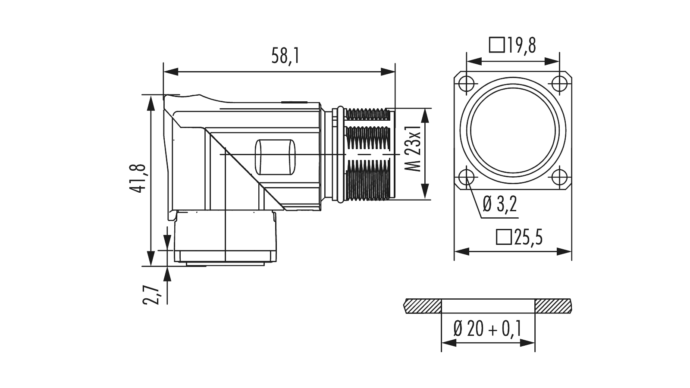

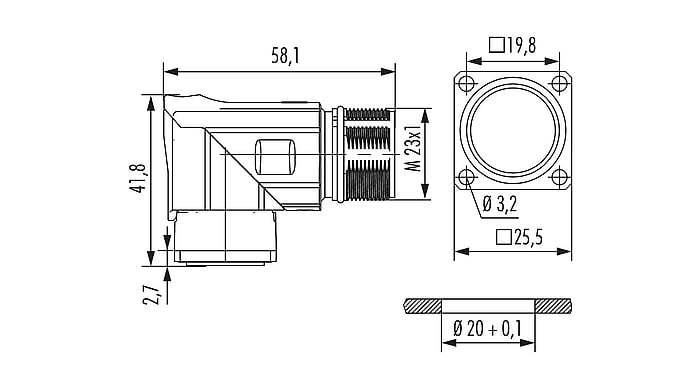

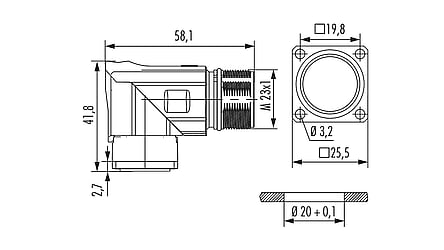

- Installation dimensions: Ø 20 + 0.1 mm
- Flange: 25 x 25 mm
- Hole spacing: 19.8 mm
- Hole diameter: 4x Ø 3.2 mm
- Temperature range: -40°C...+125°C
- Protection class: IP67 / 69K
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
// *TWILOCK-S Variante ist steckbar mit Speedtec
.
Fehler und technische Änderungen vorbehalten
