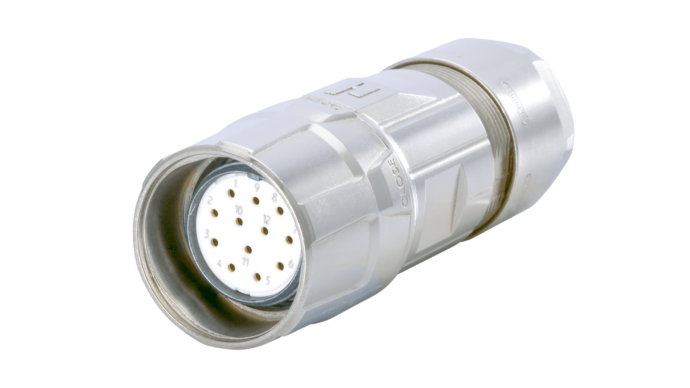

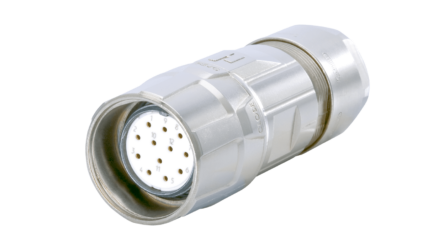

Housing M23 Signal cable connector TWILOCK/TWILOCK-S
CHF 19.95 excl. VAT, plus shipping costs
Description
M23 signal cable connector TWILOCK/TWILOCK-S (housing only, excl. insert and contacts)
This proven and universally applicable connector system from HUMMEL is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited possibilities.
.
// numerous housing designs
// wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener
.
Further, not published HUMMEL products and designs on request.
Technical data
- Housing design: Cable
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Version: TWILOCK / TWILOCK-S
- Internal thread on plug-in side: M23 x 1

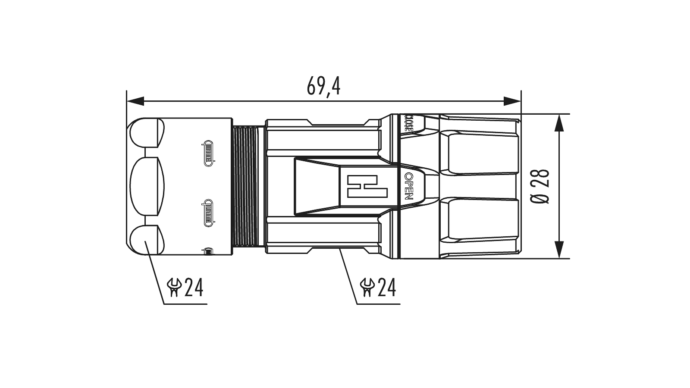

- TWILOCK/TWILOCK-S-Ø plug-in side: 28 mm
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 24/24 mm
- Cable diameter: 3-7 mm TWILOCK / 7-12 mm TWILOCK / 11-17 mm TWILOCK / 3-7 mm TWILOCK-S / 7-12 mm TWILOCK-S / 11-17 mm TWILOCK-S
- Temperature range: -40°C...+125°C
- Protection class: IP67 / 69K
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
// TWILOCK-S Variante ist steckbar mit Speedtec
.
Fehler und Technische Änderungen vorbehalten
Additional information
| Circular connector | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Catalog excerpt M23 signal connector | PDF(163.36 KB) |
|---|
