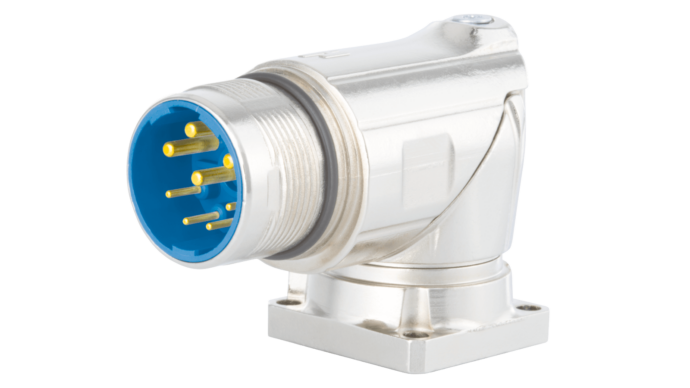

Housing M23 power device connector angled, rotatable TWILOCK/TWILOCK-S
CHF 24.90 - CHF 25.80
Description
M23 power device connector angled, rotatable TWILOCK/TWILOCK-S (housing only, excl. insert and contacts)
.
The classic HUMMEL M23 power connector is able to cover a wide range of applications. With 6-, 8- or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.
.
// High power transmission
// Screw or TWILOCK / TWILOCK-S quick-release fastener
// Numerous housing designs
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: Devices angled
- Housing material: die-cast zinc
- Material housing surface: blue passivated
- Version: angled, TWILOCK
- Male thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: unshielded
- Seal type: O-ring
- Material seals/o-rings: FKM (FPM)
- Rotatable: 330°

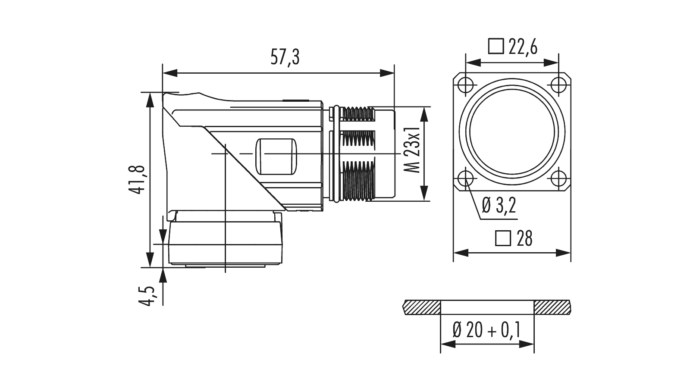

- Installation dimensions: Ø 20 + 0.1 mm
- Flange: 28 x 28 mm
- Hole spacing: 22.6 mm
- Hole diameter: 4x Ø 3.2 mm
- Protection class: IP67 / 69K
- Temperature range: -40°C...+125°C
// Die Gehäuse von M23 Hybrid und M23 Leistung sind aufgrund unserer Modularität identisch
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
// TWILOCK-S Variante ist steckbar mit Speedtec
.
Fehler und technische Änderungen vorbehalten
Additional information
| Circular connector | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| Catalog excerpt M23 power appliance couplers | PDF(262.86 KB) |
|---|
