Housing M23 signal angled connector EMC rotatable
CHF 40.15 excl. VAT, plus shipping costs
Description

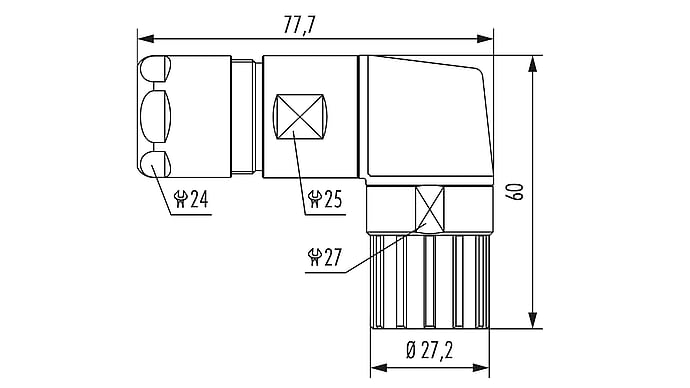

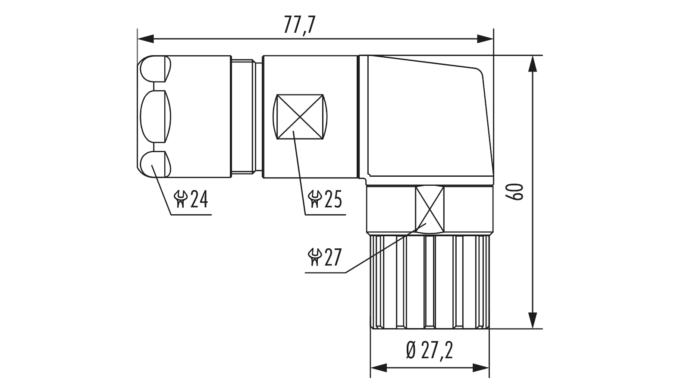

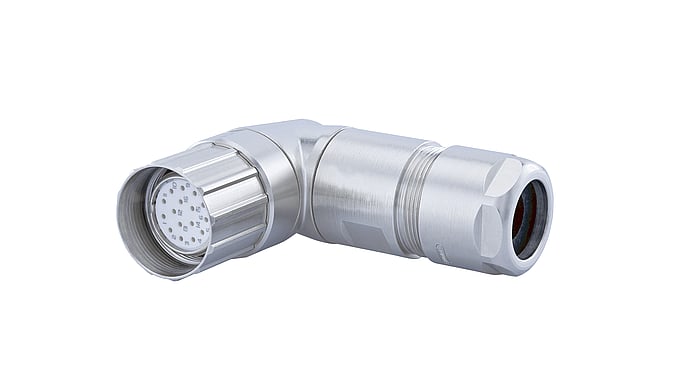

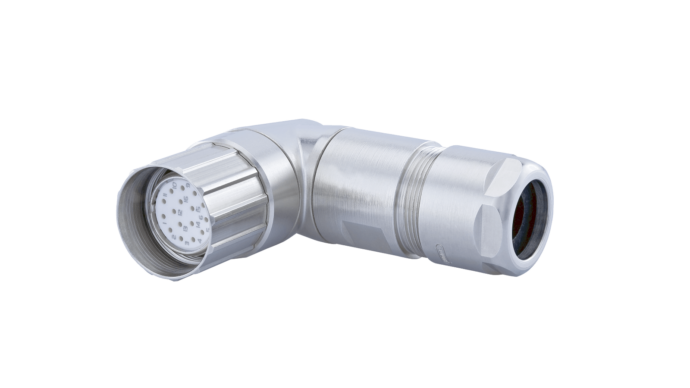

M 23 Signal right-angle connector EMC, rotatable (Housing only, excl. insert and contacts)
This proven and universally applicable connector system is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited possibilities.
.
// zahlreiche Gehäusebauformen
// große Variantenvielfalt
// TWILOCK / TWILOCK-S Schnellverschluss
.
This is how the HUMMEL system works:
// Für eine der Steckverbinderserie entsprechend der Applikation und der gewünschten Polzahl entscheiden.
// Gehäusebauformen auswählen (Kabelsteckverbinder, Kupplung, Winkel, Gerätestecker) mit dem gewünschten Verschluss-System (Schraubverschluss, TWILOCK, TWILOCK S)
// Passenden Einsatz wählen (Stifteinsatz oder Buchseneinsatz) >see accessories
// Zugehörige Kontakte (Stifte oder Buchsen) in der benötigten Anzahl wählen >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Version: EMC, rotatable
- Internal thread on plug-in side: M23 x 1
- Knurled nut Ø on plug-in side: 27.2 mm
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR
- Cable diameter: 7-12 mm / 11-17 mm
- Temperature range: -40°C...+125°C
- Protection class: IP67 / 69K
Subject to errors and technical changes
