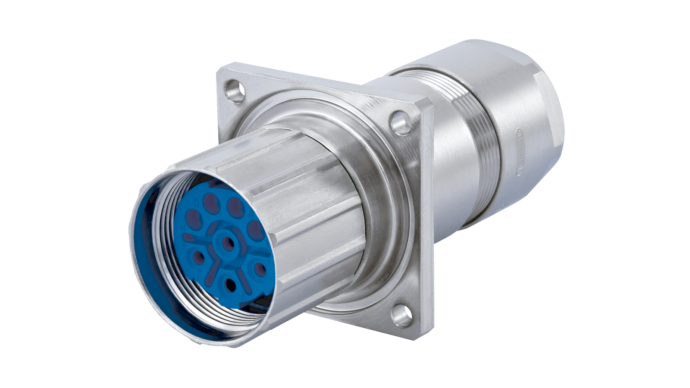

Housing M23 power type 1 appliance coupler with strain relief
CHF 44.45 excl. VAT, plus shipping costs
Description
M23 power type 1 appliance coupler with strain relief (housing only, excl. insert and contacts)
.
Single-cable solutions with hybrid connectors (OCT - One Cable Technology) are becoming increasingly important in automation and robotics. They transmit power, signals and Ethernet in a single connection. This saves assembly time, space and money. The connectors from HUMMEL AG are characterized by their absolute suitability for industrial use. Metal housings protect the sensitive and impact-sensitive contact inserts safely and reliably. The different housing designs, inserts and contacts can be combined and thus offer the user a wide range of variants.
.
// numerous housing designs
// wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener
.
Further, not published HUMMEL products and designs on request.
Technical data
- Housing material: copper-zinc alloy
- Material housing surface: nickel-plated
- Mounting type: rear wall, front wall
- Internal thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR

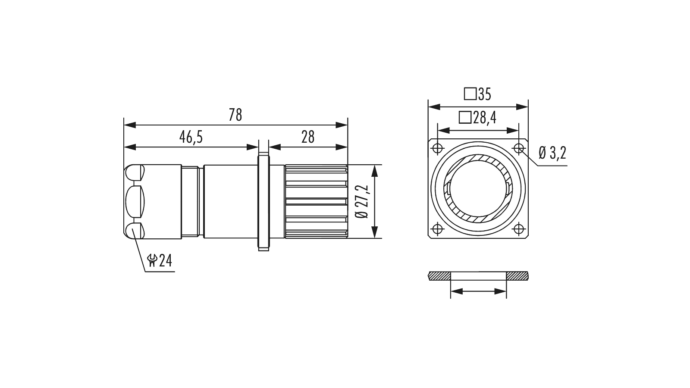

- Installation dimensions: min. Ø 27.2 + 0.2 mm
- Flange: 35 x 35 mm
- Hole spacing: 28.4 mm
- Hole diameter: 4 x Ø 3.2 mm
- Width across flats (SW): 24 mm
- Cable diameter: 7 - 12 mm / 11 - 17 mm
- Protection class: IP67 / 69K
- Temperature range: -40°C...+125°C
// Die Gehäuse von M23 Hybrid und M23 Leistung sind aufgrund unserer Modularität identisch
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
// 7.639.XXX.XXX nur Stift-Einsatz möglich
.
Fehler und technische Änderungen vorbehalten
