Housing M23 appliance coupler power INOX
CHF 46.25 excl. VAT, plus shipping costs
Description

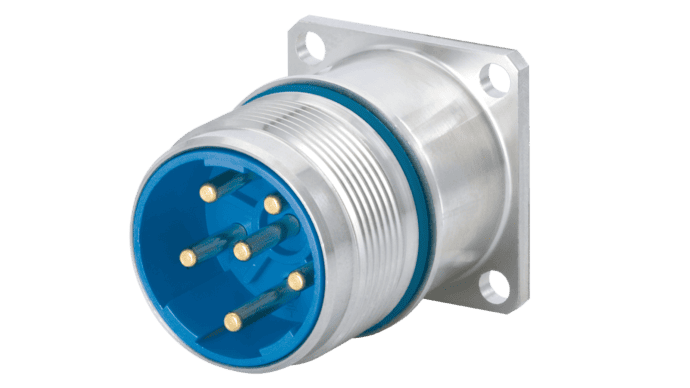

M23 appliance coupler power INOX front panel mounting (Housing only, excl. insert and contacts)
Special applications require special solutions. This also applies to circular connectors made of stainless steel. They are used wherever the ambient conditions are extremely harsh or the hygiene requirements are particularly high.
.
A huge modular construction kit
The modular design makes it possible: many HUMMEL can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
numerous advantages:
.
// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools
.
This is how the system works:
// Choose one of the connector series according to the application and the required number of poles. (M 12 Power, M 16, M 23 Profinet, M 23 RJ 45, M 23 Signal, M 27 Signal, M 23 Power / Hybrid, M 40 Power)
// Select housing types (cable connector, coupling, elbow, device plug) with the desired locking system. (screw cap, TWILOCK, TWILOCK S)
// Select a suitable insert >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing material: Stainless steel 1.4404 (AISI 316)
- Version: Screw
- Locking type: Screw fastening
- Shielding: unshielded
- Seal type: O-ring
- Material seals/o-rings: FKM (FPM)
- Flange: 25 x 25 mm
- Hole spacing: 19.8 mm
- Hole diameter: 4x Ø 3.2 mm
- Protection class: IP67 / 69K
- Temperature range: -40°C to +125°C
Subject to technical changes
