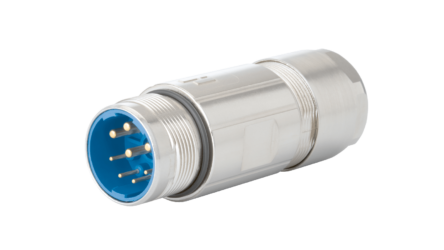

Housing M23 Power Coupling connector TWILOCK / TWILOCK-S
CHF 36.95 - CHF 39.80
Description
M23 power coupling connector (housing only, excl. insert and contacts)
The classic HUMMEL M23 power connector is able to cover a wide range of applications. With 6-, 8- or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.
.
// High power transmission
// Screw or TWILOCK / TWILOCK-S quick-release fastener
// Numerous housing designs
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing design: Coupling
- Housing material: brass, die-cast zinc
- Material housing surface: nickel-plated
- Use: Pen
- Version: TWILOCK

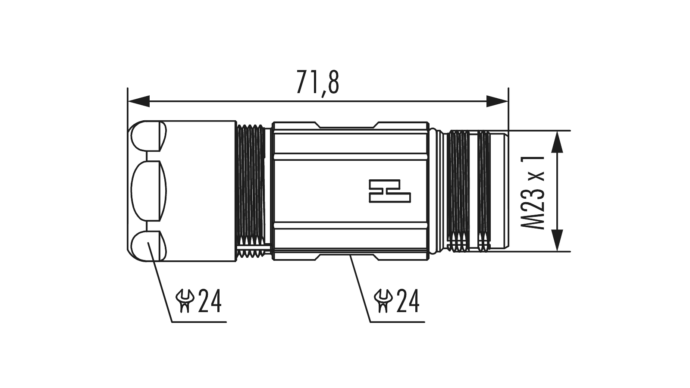

- Male thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: shielded
- Seal type: O-ring
- Material seals/o-rings: NBR
- Width across flats (SW1/SW2): 24/24 mm
- Cable diameter: 7-12 mm / 11-17 mm
- Temperature range: -40°C...+125°C
- Protection class: IP67 / 69K
Subject to errors and technical changes
Additional information
| Circular connector | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| LEDs | ||||||||||||
|
|
||||||||||||
| More | ||||||||||||
|
||||||||||||
Data sheets
| Catalog excerpt M23 Performance | PDF(245.59 KB) |
|---|
