Housing M23 power Device connector Rear wall mounting
CHF 22.40 excl. VAT, plus shipping costs
Description

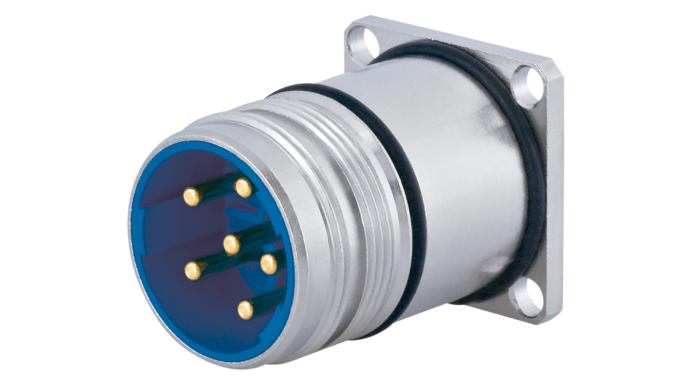

M23 power appliance coupler rear panel mounting (housing only, excl. insert and contacts)
.
The classic HUMMEL M23 power connector is able to cover a wide range of applications. With 6, 8 or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.
.
// High power transmission
// Screw or TWILOCK / TWILOCK-S quick-release fastener
// Numerous housing designs
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing material: copper-zinc alloy
- Material housing surface: nickel-plated
- Mounting type: Rear wall
- Version: TWILOCK
- Male thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: unshielded
- Material seals/o-rings: NBR

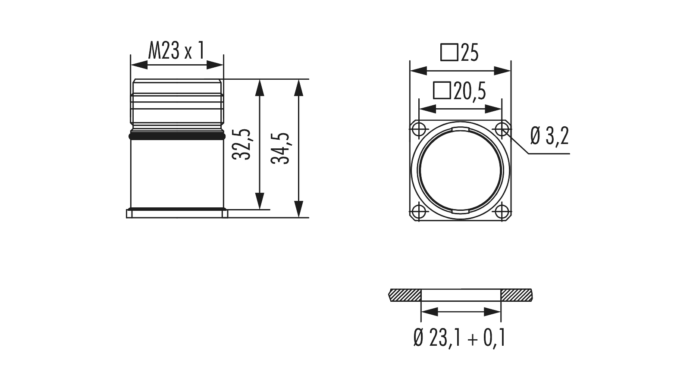

- Installation dimensions: Ø 23.1 + 0.1 mm
- Flange: 25 x 25 mm
- Hole spacing:20.5 mm
- Hole diameter: 4x Ø 3.2 mm
- Protection class: IP67 / 69K
- Temperature range: -40°C...+125°C
// Die Gehäuse von M23 Hybrid und M23 Leistung sind aufgrund unserer Modularität identisch
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
// 7.639.XXX.XXX nur Stift-Einsatz möglich
.
