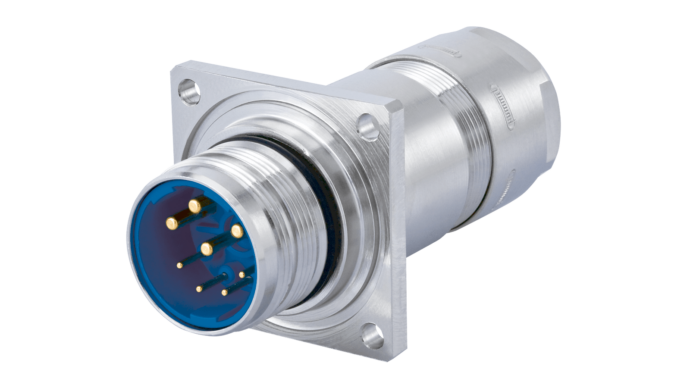

Housing M23 power appliance coupler with strain relief
CHF 36.95 excl. VAT, plus shipping costs
Description
M23 power appliance coupler with strain relief (housing only, excl. insert and contacts)
.
The classic HUMMEL M23 power connector is able to cover a wide range of applications. With 6-, 8- or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.
.
// High power transmission
// Screw or TWILOCK / TWILOCK-S quick-release fastener
// Numerous housing designs
.
Other, unpublished HUMMEL products and designs on request.
Technical data
- Housing material: copper-zinc alloy
- Material housing surface: nickel-plated
- Mounting type: rear wall, front wall
- Male thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: shielded
- Material seals/o-rings: NBR

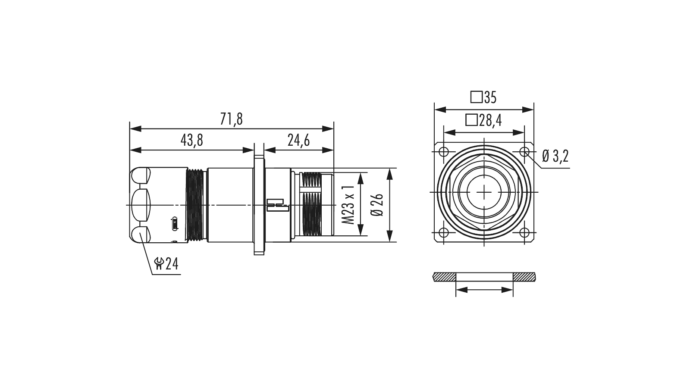

- Installation dimensions: min. Ø 26.5 + 0.2 mm
- Flange: 35 x 35 mm
- Hole spacing: 28.4 mm
- Hole diameter: 4 x Ø 3.2 mm
- Width across flats (SW): 24 mm
- Cable diameter: 7 - 12 mm / 11 - 17 mm
- Protection class: IP67 / 69K
- Temperature range: -40°C...+125°C
// Die Gehäuse von M23 Hybrid und M23 Leistung sind aufgrund unserer Modularität identisch
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
// 7.639.XXX.XXX nur Stift-Einsatz möglich
.
Fehler und technische Änderungen vorbehalten
Additional information
| Circular connector | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| Catalog excerpt M23 power / hybrid device & right-angle connectors | PDF(245.59 KB) |
|---|
