LED modules
SO SIMROUND, round LED modules
High quality LED module Made in EU
CHF 27.30 - CHF 494.20
Item no:
n. a.
Description

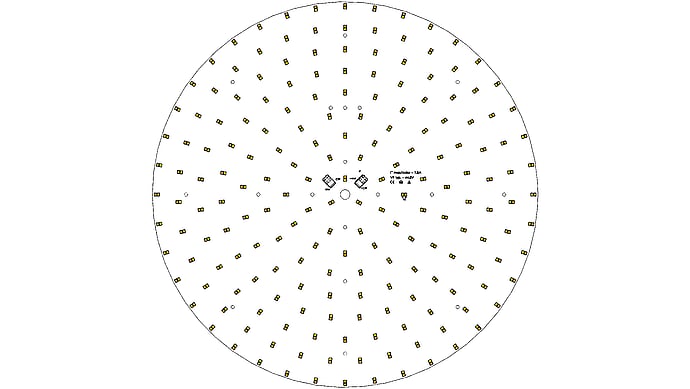

SIMROUND LED MODULES
- Round LED modules in various diameters, 50-980 mm
- Available as Tunable White or Single Color 3000 and 4000K
- 3000K to 4000K (= one print for 3000K or 4000K)
- These modules can also be operated as standard 2700, 3000, 4000, or 6500K versions, as both color temperatures on the module can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90 and still very high efficiency thanks to the new KSF 2835 LEDs
- Very narrow color tolerance (MacAdam 3)
- PCB material FR-4 or aluminum depending on size
- Operating mode: Constant current
- Manufacturer: Lumesi
Additional information
Data sheets
| SO50 | PDF(1.03 MB) |
|---|---|
| SO86 | PDF(825.88 KB) |
| SO134 | PDF(1.1 MB) |
| SO180 | PDF(763.31 KB) |
| SO220 | PDF(867.12 KB) |
| SO280 | PDF(973.86 KB) |
| SO340 | PDF(745.69 KB) |
| SO400 | PDF(758.9 KB) |
| SO490 | PDF(758.46 KB) |
| SO520 | PDF(657.22 KB) |
| SO660 | PDF(744.79 KB) |
| SO720 | PDF(750.68 KB) |
| SO800 | PDF(673.1 KB) |
| SO930 | PDF(1.45 MB) |
Downloads
| LED module calculation 3.2 | Zip file (105.78 KB) |
|---|
Accessories
-
