42W LED driver constant current 300 to 1050mA, 2.5 to 49Vdc, DALI2, AC Push
CHF 80.10 excl. VAT, plus shipping costs
Description

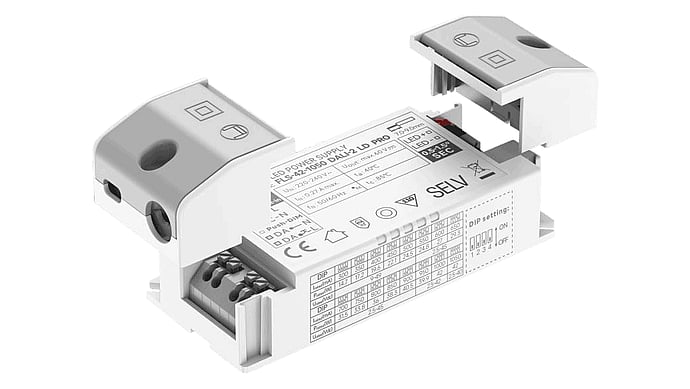

The FLS-42-1050 DALI2 LD PRO LED driver with constant current output is designed for the operation of LED lighting applications from 300 to 1050mA in the voltage range from 2.5 to 49Vdc. The output current can be set using the DIP switch on the device. The side covers can be removed for operation within the luminaire. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Technical data
- Forward voltage range 2.5 to 49Vdc (see table in data sheet)
- DALI2 and AC Push interface
- Amplitude dimming with dimming range 12...100% / PWM dimming from 1-12%
- Adjustable output currents 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA
- EOFI level 100%
- Dimensions 98 x 43 x 22mm (L x W x H) without side cover / 132 x 43 x 22mm with side cover
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-42-1050 DALI2 LD PRO | PDF(1.65 MB) |
|---|---|
| AC Push operating instructions | PDF(153 KB) |
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-42-1050 DALI2 LD PRO | Zip file (584.29 KB) |
|---|
Accessories
-
SC-2305-RP-AC-EDIZIODUE
DALI rotary switch, wall mounting, EdizioDue compatibleCHF 99.5010 Available immediately -
DLC-02
2-channel DALI 2.0 controller for 2×64 DALI drivers, single color, Tunable White, RGBWCHF 351.902 Available immediately
Similar products
-
XLC-40-H-DA2SN

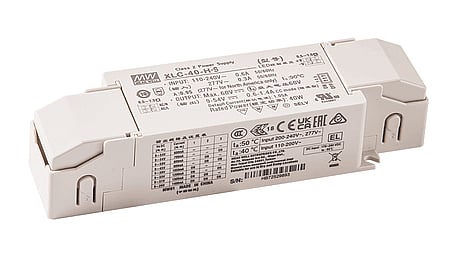

40W LED control gear 600mA to 1400mA/9V...54V, DALI2, AC Push, NFC, IndependentCHF 42.2010 Available immediately -
