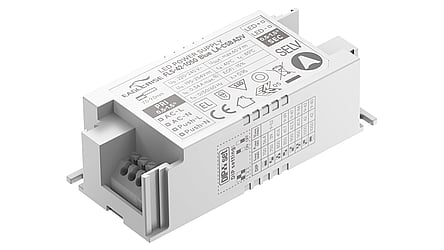

42W LED driver constant current 150-1050mA, 2.5-49Vdc, Casambi
CHF 147.90 excl. VAT, plus shipping costs
Description
The FLS-42-1050-BLUE-LD-CSB-ADV-C LED driver with constant current output is designed for the operation of LED lighting applications from 150 to 1050mA in the voltage range from 2.5 to 49Vdc. The output current can be set using the DIP switch on the device. The factory-fitted side covers with integrated strain relief can be removed for operation within the luminaire. The driver can be controlled via smartphone using the CASAMBI app.
Technical data
- Forward voltage range 2.5 to 49Vdc
- Casambi, AC Push
- Amplitude dimming with dimming range 1...100%
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 500mA / 600mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA
- EOFI level 100%
- Dimensions 131x43x30mm with side cover (factory fitted) / 97 x 43 x 30mm (L x W x H) without side cover
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-42-1050 DALI2 LD ADV | PDF(1.3 MB) |
|---|---|
| AC Push operating instructions | PDF(153 KB) |
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-42-1050 | Zip file (4.27 MB) |
|---|
