42W LED driver constant current 150-1050mA, 2.5-52Vdc, DALI2, AC Push
CHF 65.70 excl. VAT, plus shipping costs
Description

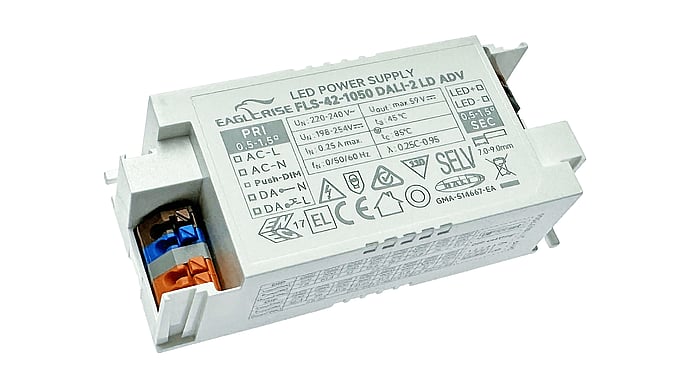

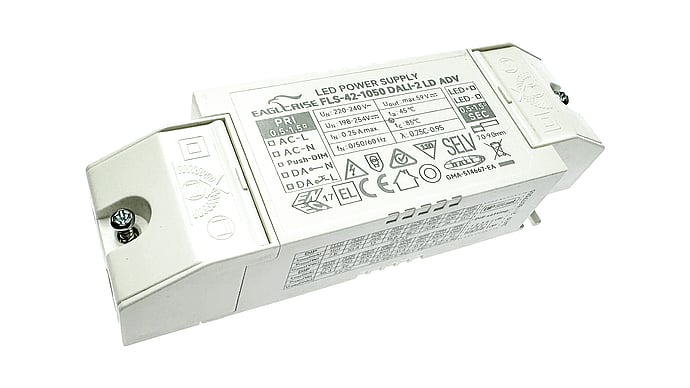

The FLS-42-1050 DALI2 LD ADV LED driver with constant current output is designed for the operation of LED lighting applications from 150 to 1050mA in the voltage range from 2.5 to 52Vdc. The output current can be set using the DIP switch on the device. For operation within the luminaire, the factory-fitted side covers with integrated strain relief can be removed. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Technical data
- Forward voltage range 9 to 54Vdc
- DALI2 and AC Push interface
- Amplitude dimming with dimming range 1...100%
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 500mA / 600mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA
- EOFI Level 95%
- Dimensions 131x43x30mm with side cover / 97 x 43 x 30mm (L x W x H) without side cover
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-42-1050 DALI2 LD ADV | PDF(640.59 KB) |
|---|---|
| AC Push operating instructions | PDF(153 KB) |
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-42-1050 | Zip file (4.27 MB) |
|---|
