LED constant current

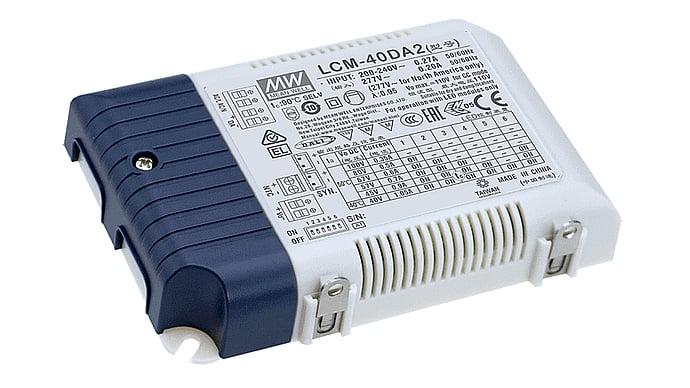

40W LED driver CC 350-1050mA, 2-100Vdc, DALI2, AC Push
CHF 63.80 excl. VAT, plus shipping costs
Item no:
LCM-40DA2
Stock level:163 Available immediately
Packaging ex works:
54 piece
Description
LCM-40DA2 is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI2 or AC Push.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 2-100Vdc also enables the operation of smaller loads
- Controllable with DALI2 and AC Push
- Dimming is flicker-free with current control, no PWM at the output
- Up to 10 LCMs can be synchronized in master/slave mode (additional SYNC cable required)
Control
- DALI2

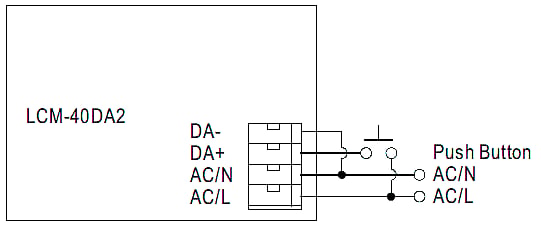

- AC Push
Dimming range
The dimming range is 6% to 100% of the output current.
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet LCM-40DA | PDF(718.65 KB) |
|---|---|
| AC Push operating instructions LCM-40DA2 | PDF(311.89 KB) |
| Test Report LCM-40DA | PDF(286.67 KB) |
| Installation Manual LCM-40DA2 | PDF(668.19 KB) |
| Current adjustment with LCM-40 / LCM-60 resistors | PDF(262 KB) |
| Protection LED power supplies | PDF(29.09 KB) |
Downloads
| 3D data LCM-40DA | Zip file (542.21 KB) |
|---|
Accessories
-
DLC-02
2-channel DALI 2.0 controller for 2×64 DALI drivers, single color, Tunable White, RGBWCHF 351.902 Available immediately -

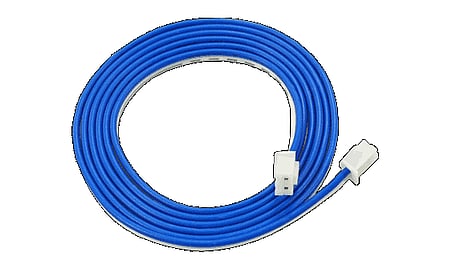

LCM-100-SYNC
Synchronization cable for LCM-40/-60 power supply units, 100cm183 Available immediately -

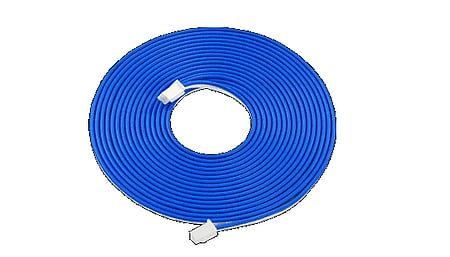

LCM-300-SYNC
Synchronization cable for LCM-40/-60 power supply units, 300cm16 Available immediately -

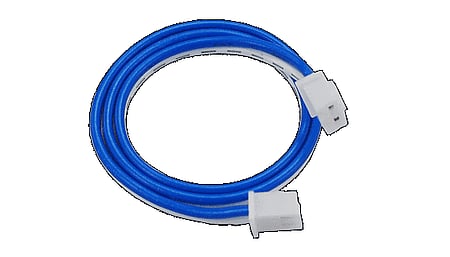

LCM-030-SYNC
Synchronization cable for LCM-40/-60 power supply units, 30cm15 Available immediately -

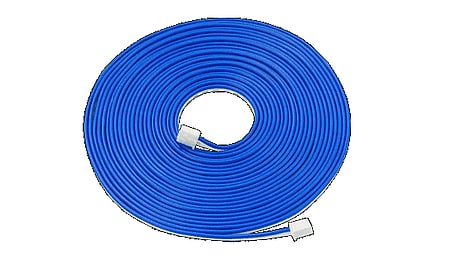

LCM-500-SYNC
Synchronization cable for LCM-40/-60 power supply units, 500cm18 Available immediately -
SC-2305-RP-AC-EDIZIODUE
DALI rotary switch, wall mounting, EdizioDue compatibleCHF 99.5010 Available immediately
Similar products
-
LCM-60DA2
60W LED driver CC 500-1400mA, 2-90Vdc, DALI2, AC PushCHF 65.60266 Available immediately -
LCM-40EO
40W LED driver CC 350-1050mA, 2-100Vdc, ENOCEANCHF 92.00Available to order -
FLS-42-1050-DALI2-LD-ADV-C
42W LED driver constant current 150-1050mA, 2.5-52Vdc, DALI2, AC PushCHF 65.70693 Available immediately -

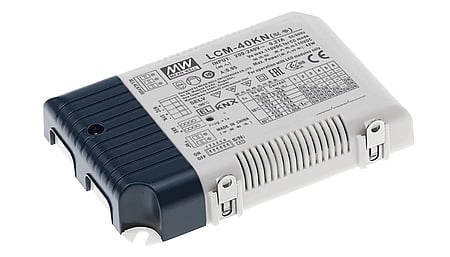

LCM-40KN
40W LED driver CC 350-1050mA, 2-100Vdc, KNXCHF 85.102 Available immediately -
LCM-40TW
40W LED driver CC 500-1050mA, DALI2, DT8, DT6 for single color and Tunable White applicationsCHF 61.80115 Available immediately -
XLC-40-H-DA2SN
40W LED control gear 600mA to 1400mA/9V...54V, DALI2, AC Push, NFC, IndependentCHF 42.2010 Available immediately -
LCM-40
40W LED driver CC 350-1050mA, 2-100VdcCHF 52.8052 Available immediately
