LED constant current
25W LED driver CC 350-1050mA, 6-54Vdc, DALI2, AC Push
CHF 52.80 excl. VAT, plus shipping costs
Item no:

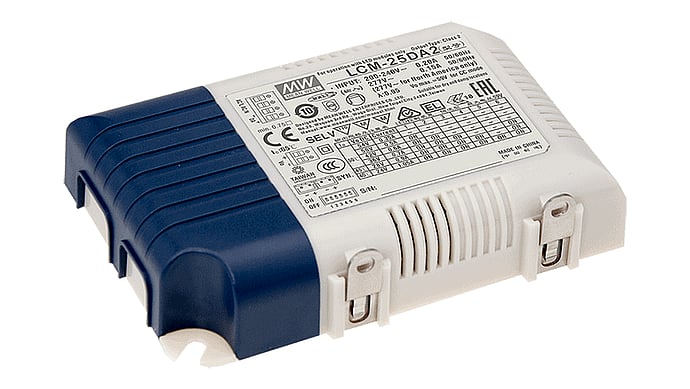

LCM-25DA2
Stock level:4 Available immediately
Packaging ex works:
72 piece
Description
LCM-25DA2 is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI2 or AC Push.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 6-54Vdc also enables the operation of smaller loads
- Controllable with DALI and AC Push
- Dimming is flicker-free with current control, no PWM at the output
- Up to 10 LCMs can be synchronized in master/slave mode (additional SYNC cable required)
Control
- DALI2

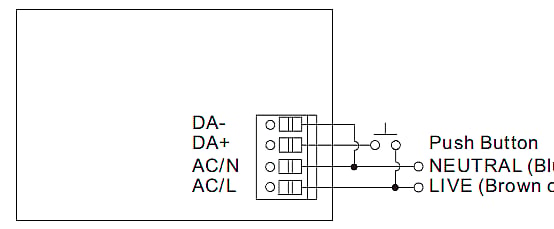

- AC Push
Dimming range
The dimming range is 6% to 100% of the output current.
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet LCM-25DA | PDF(690.29 KB) |
|---|---|
| AC Push operating instructions LCM-25DA2 | PDF(152.78 KB) |
| Installation Manual LCM-25DA2 | PDF(94.29 KB) |
| Test Report LCM-25DA | PDF(237.65 KB) |
| Protection LED power supplies | PDF(29.09 KB) |
Downloads
| 3D Step File LCM-25 | Zip file (547.51 KB) |
|---|
Accessories
-
LCM-25
25W LED driver CC 350-1050mA, 6-54VdcCHF 42.20171 Available immediately -

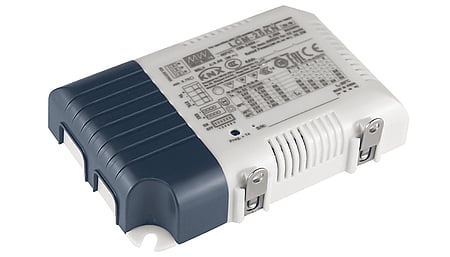

LCM-25KN
25W LED driver CC 350-1050mA, 6-54Vdc, KNXCHF 75.908 Available immediately -
XLC-25-H-DA2
25W LED control gear 300mA to 1050mA/9V...54V, DALI2, AC PushCHF 37.4018 Available immediately -
SRP-2305-25-C700-NFC
25W DALI2 DT6, AC-PUSH, constant current LED driver, 250-700mA, NFCCHF 37.3087 Available immediately
Similar products
-
DLC-02
2-channel DALI 2.0 controller for 2×64 DALI drivers, single color, Tunable White, RGBWCHF 351.902 Available immediately -

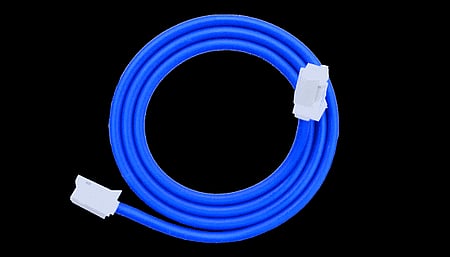

LCM-30-SYNC25
Synchronization cable for LCM-25 power supply units, 30cm52 Available immediately -

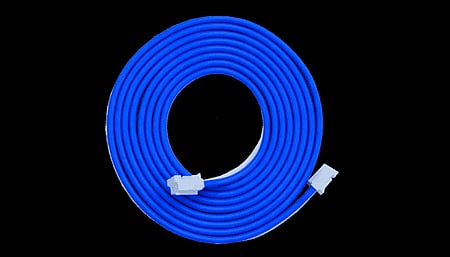

LCM-100-SYNC25
Synchronization cable for LCM-25 power supply units, 100cm16 Available immediately -

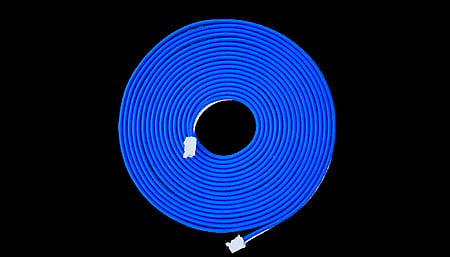

LCM-300-SYNC25
Synchronization cable for LCM-25 power supply units, 300cm39 Available immediately -
SC-2305-RP-AC-EDIZIODUE
DALI rotary switch, wall mounting, EdizioDue compatibleCHF 99.5010 Available immediately -

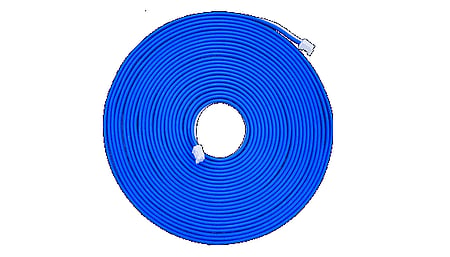

LCM-500-SYNC25
