LED constant current

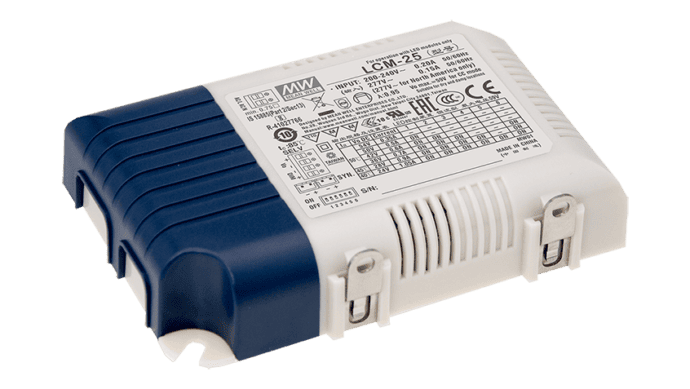

25W LED driver CC 350-1050mA, 6-54Vdc
CHF 42.20 excl. VAT, plus shipping costs
Item no:
LCM-25
Stock level:171 Available immediately
Packaging ex works:
72 piece
Description
LCM-25 is a flexible, dimmable LED converter with constant current output.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 6-54Vdc also enables the operation of smaller loads
- 3in1 dimming function (0-10V / 1-10V / resistor / 10V PWM control)
- Dimming is flicker-free with current control, no PWM at the output
- Up to 10 LCMs can be synchronized in master/slave mode (additional SYNC cable required)
Control
- 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 10% Duty Cycle=10% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 6% to 100% of the output current.
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet LCM-25 | PDF(683.94 KB) |
|---|---|
| Installation instructions LED driver Mean Well | PDF(1.2 MB) |
Downloads
| 3D Step File LCM-25 | Zip file (547.51 KB) |
|---|
Accessories
-
LCM-100-SYNC25
Synchronization cable for LCM-25 power supply units, 100cm16 Available immediately -
LCM-30-SYNC25
Synchronization cable for LCM-25 power supply units, 30cm52 Available immediately -
LCM-500-SYNC25
Synchronization cable for LCM-25 power supply units, 500cmAvailable to order -
LCM-300-SYNC25
Synchronization cable for LCM-25 power supply units, 300cm39 Available immediately
