30W LED driver constant current 150 to 700mA, 2.5 to 49Vdc, DALI2, AC Push
CHF 64.80 excl. VAT, plus shipping costs
Description

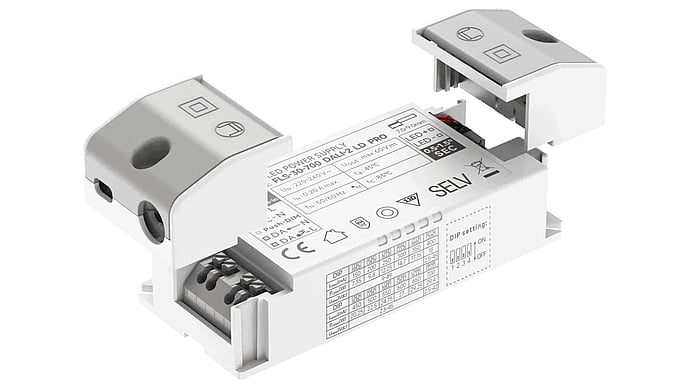

The FLS-30-700 DALI2 LD PRO LED driver with constant current output is designed for the operation of LED lighting applications from 150 to 700mA in the voltage range from 2.5 to 49Vdc. The output current can be set using the DIP switch on the device. The side covers can be removed for operation within the luminaire. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Technical data
- Forward voltage range 2.5 to 49Vdc (observe table in data sheet!)
- DALI2 and AC Push interface
- Amplitude dimming with dimming range 12...100% / PWM dimming from 1-12%
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA
- EOFI level 100%
- Side cover fitted ex works
- Dimensions 98 x 43 x 22mm (L x W x H) without side cover / 132x43x22mm with side cover22
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-30-700 DALI2 LD PRO | PDF(1.95 MB) |
|---|---|
| AC Push operating instructions | PDF(153 KB) |
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-30 DALI2 LD PRO | Zip file (584.29 KB) |
|---|
