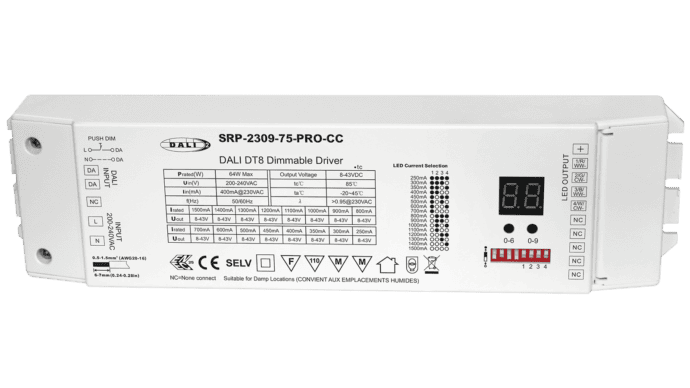

75W DALI DT8, 4in1, constant current LED driver 250-1500mA
CHF 113.70 excl. VAT, plus shipping costs
Description
SRP-2309-75-PRO-CC with PWM output and integrated DALI DT8 interface is ideal for operating constant current LED applications such as LED modules. One device for all lighting situations, TW, single color, RGB and RGBW.
Control
- DALI DT8, AC-PUSH
Application
- Tunable White, RGBW, RGBW, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Dimmable 4 in 1 constant current DALI DT8 LED driver
- AC-Push dimmable
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- 4 channels constant current output, total output power up to 75W
- 250mA-1500mA output current optional
- Output current level selectable via DIP switch
- Class 2 power supply unit, fully insulated plastic housing
- Power factor > 0.9, efficiency > 87%
- 4 universal device types in 1: primary N, Tc, XY coordinate, RGBW, adjustable via the buttons
- DALI DT8 device for controlling RGBW outputs or tunable white outputs via a single DALI address
- Primary color type N, Tc, XY coordinate, RGBW can be set via manual buttons
- Supports DT8 device commands, compatible with DALI masters that support DT8 commands
- Configuration via DALI master USB interface
- Protection against short circuit, overload and overtemperature
- Protection class IP20
- 5 year guarantee
- Dimension 244 x 64 x 32mm
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| SRP-2309-75-PRO-CC | PDF(424.17 KB) |
|---|
