LED operating elements

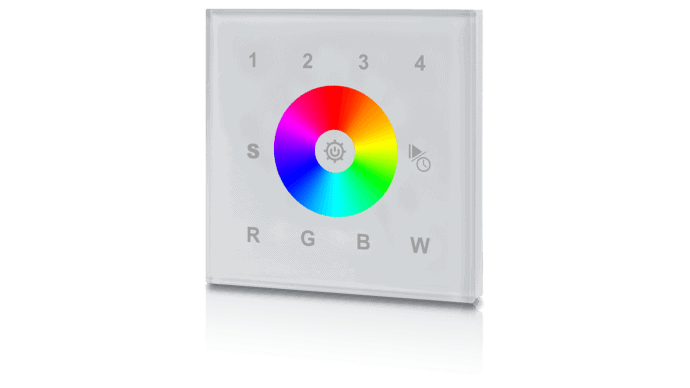

DALI DT8 Touch Panel AC, RGBW, wall mounting
CHF 101.40 excl. VAT, plus shipping costs
Item no:
SC-2309-RGBW-P4AC
Stock level:26 Available immediately
Description
DALI DT8 touch panel for wall mounting, suitable for all SR-2309 drivers/dimmers.
Control
- DALI DT8
Application
- RGBW
Technical data
- Dimension: 86 x 86 x 41mm
- Complies with the DALI standard protocol IEC 62386-209
- Built-in 100mA DALI power supply unit for supplying up to max. 50 DALI ECGs
- Power supply via the DALI bus when not connected to the mains supply
- Max. 100 DALI ECGs on a DALI line can be controlled by 4 central units via broadcast (2 via AC mains, 2 via DALI bus)
- Enables the control of 4 DALI groups and 4 DALI scenes
- Allows you to set the start DALI group number (0-15) and the scene number (0-15) using the rotary switch on the back.
- Supports DT8 devices
- Color setting according to the DALI specifications of device type 8, color type XY coordinate.
- Each DT8 device is controlled via a single DALI address
- Built-in 10 color sequences
- Color: transparent
- Operating mode: 240VAC, DALI BUS
- IP20 Degree of protection
- Warranty: 5 years
Additional information
| LED operating elements | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| LEDs | ||||||||||||
|
||||||||||||
| More | ||||||||||||
|
||||||||||||
Data sheets
| SC-2309-RGBW-P4AC | PDF(383.68 KB) |
|---|
