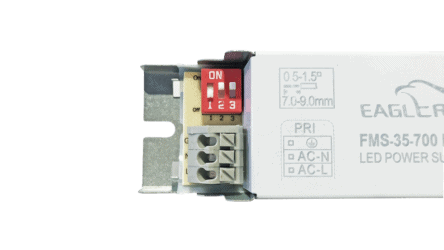

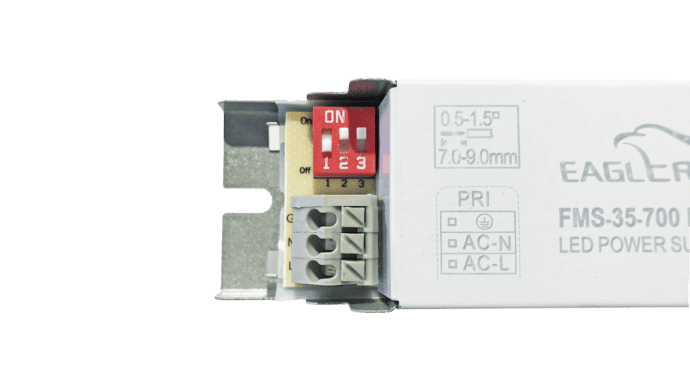

FMS 35 700 LD Primary

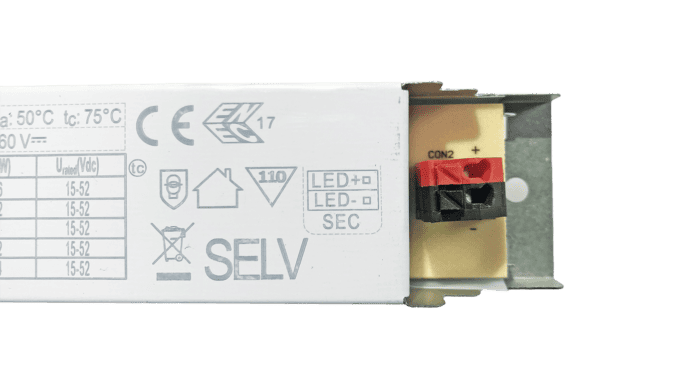

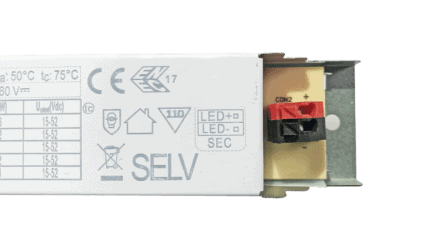

FMS 35 700 LD Secondary

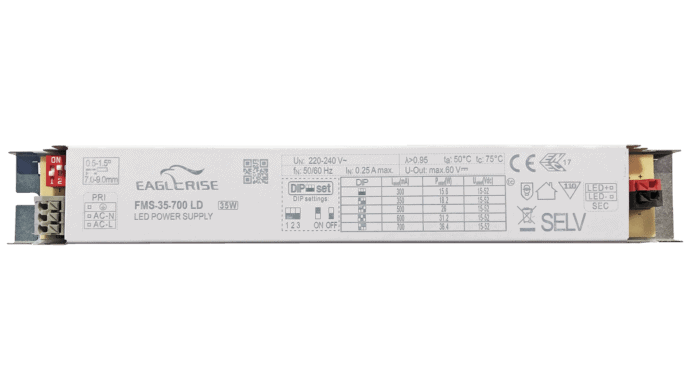

FMS 35 700 LD TOP

35W LED driver constant current 300/350/500/600/700mA, 15-52Vdc

CHF 25.00 excl. VAT, plus shipping costs

Item no: FMS-35-700 LD
Stock level:3320 Available immediately
Packaging ex works: 63 piece
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

The LED driver FMS-35-700 LD with constant current output is designed for operating LED lighting applications from 300 to 700mA in the voltage range from 15 to 52Vdc. The output current can be set using the DIP switch on the device.

Technical data

  • Input voltage 176 to 264Vac
  • Forward voltage range 15 to 52Vdc
  • Adjustable output currents 300mA / 350mA / 500mA / 600mA / 700mA (factory setting)
  • Dimensions 220 x 30 x 21mm (L x W x H)
  • 5 year guarantee
  • Manufacturer: Eaglerise

Additional information

LED constant current
Power (W)

35

Control

not dimmable

Channels

1

Current setting

DIP switch

Application

Single Color

Length (mm)

220

Width (mm)

30

Height (mm)

21

IP protection

IP20

Connection

Spring clamp

Manufacturer

Eaglerise

Manufacturer's warranty

5 years
LEDs
More
Output current (mA)

300, 350, 500, 600, 700

Output voltage range (Vdc)

15...52

Efficiency typ.

88%

Data sheets

Data sheet FMS-35-700 LD PDF(1.03 MB)
Eaglerise LED Driver Installation Manual PDF(327.31 KB)

Downloads

3D Step File FMS-35-700 LD Zip file (2.8 MB)
