42W LED driver constant current 150 to 1050mA, 2.5 to 42Vdc
CHF 25.60 excl. VAT, plus shipping costs
Description

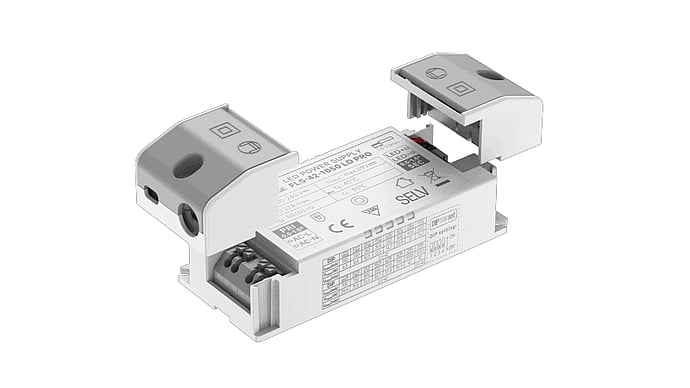

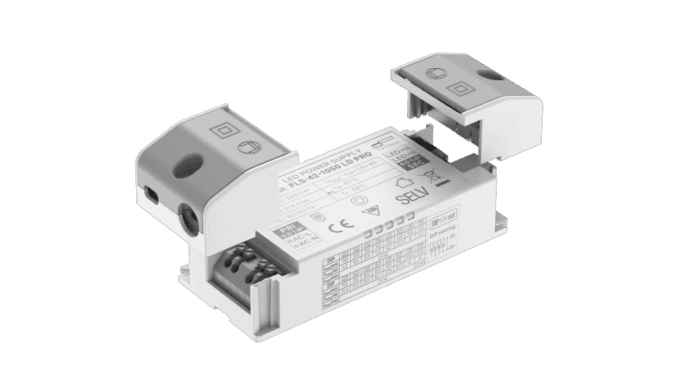

The FLS-42-1050 LD PRO LED driver with constant current output is designed for operating LED lighting applications from 150 to 1050mA in the voltage range from 2.5 to 42Vdc. The output current can be set using the DIP switch on the device. The side covers can be removed for operation within the luminaire.
Technical data
- Forward voltage range 2.5 to 42Vdc (see table in data sheet)
- Adjustable output currents 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 500mA / 600mA / 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA
- Dimensions 98 x 43 x 22mm (L x W x H) without side cover / 132 x 43 x 22mm with side cover
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-42-1050 LD PRO | PDF(614.72 KB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-42-1050 LD PRO | Zip file (584.29 KB) |
|---|
Accessories
-
3M-5952M12
3M VHB adhesive tape 5952F, black, 12mm x 33m, 1.1mmCHF 93.80Available to order
Similar products
-
FLS-42-1050-LD-ADV-C

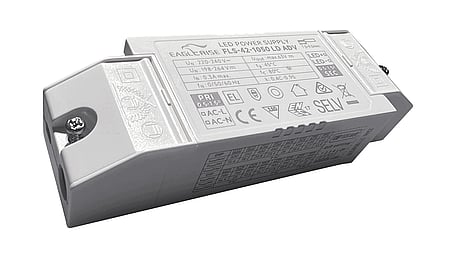

42W LED driver constant current 300-1050mA, 9-52Vdc, with side coverCHF 28.00169 Available immediately -
