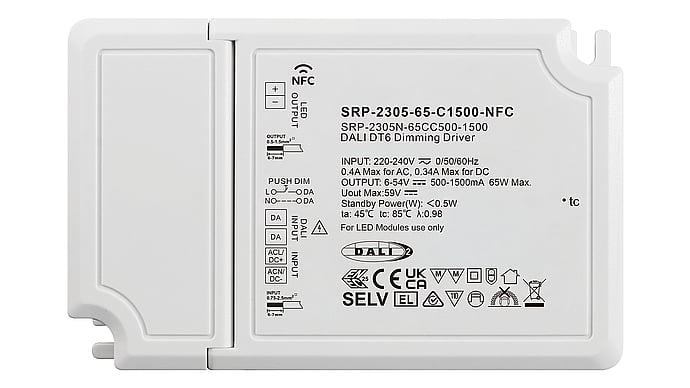

65W DALI2 DT6, AC-PUSH, constant current LED driver, 500-1500mA, NFC
CHF 56.00 excl. VAT, plus shipping costs
Description
SRP-2305-65-C1500-NFC is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI2 DT6. The output current can be set between 500 and 1500mA via NFC.
Control
- DALI2 DT6, AC-PUSH
Application
- Single Color
Current setting
- NFC
Functions programmable with app and NFC
- CLO (Constant Lumen Output)
- CD (Corridor Mode)
- EL (Emergency Mode)
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitude dimming
Technical data
- DALI2 DT6 and AC-PUSH dimmable 1-channel NFC power supply unit
- 1 channel 500~1500mA constant current output, selectable via NFC program tool, default 1050mA
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT6 device
- Dimmable LED driver. Max. output power 65W
- Output voltage range: 6-54VDC
- Class 2 power supply unit, fully insulated plastic housing
- High power factor and efficiency
- For switching and dimming LED lighting fixtures
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Compatible with universal DALI masters that support DT6 commands
- Protection class IP20
- 5 year guarantee
- Dimensions: 123.9 x 78.8 x 30mm
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| SRP-2305-65-C1500-NFC | PDF(1.13 MB) |
|---|
