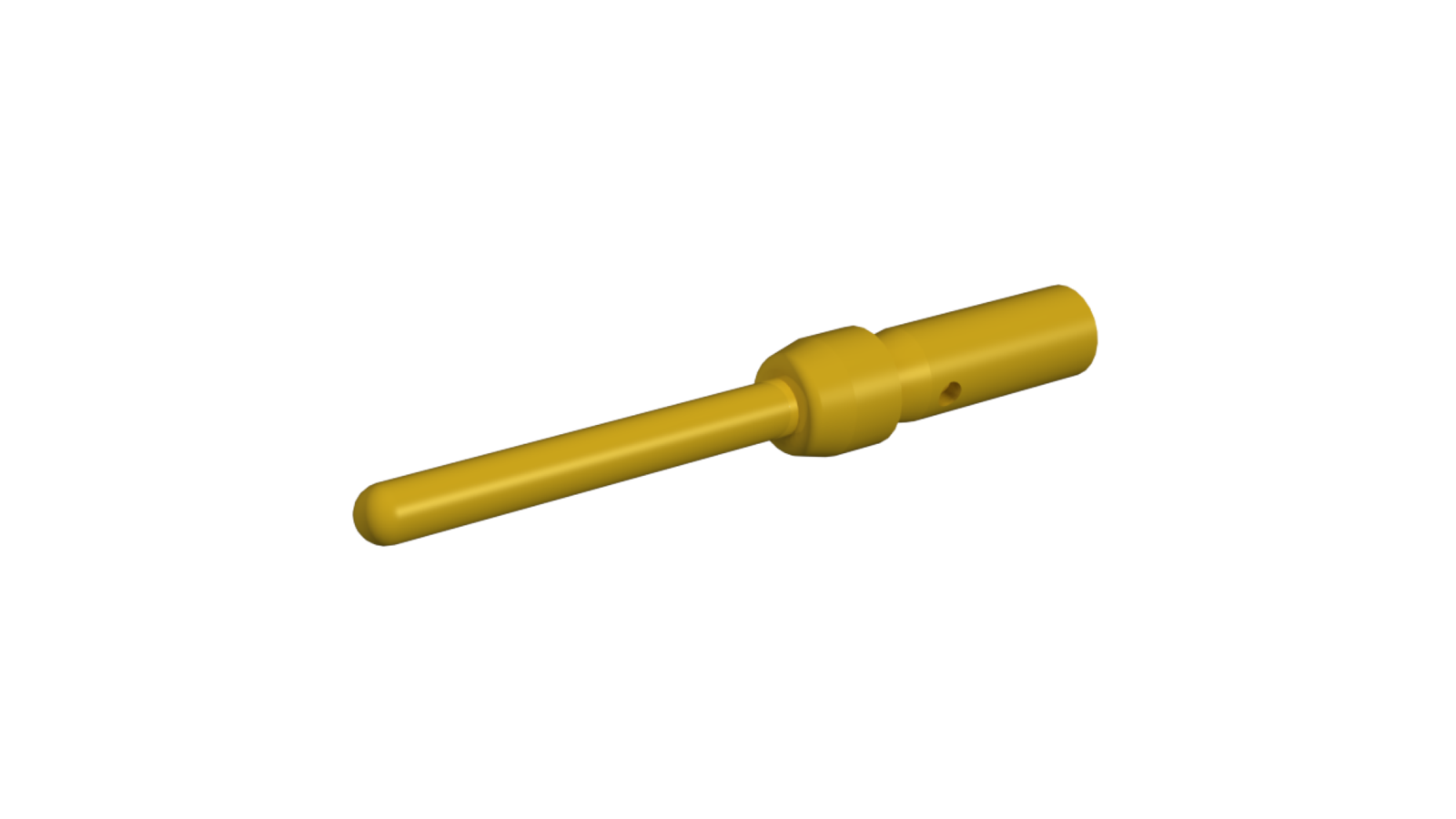

M27 crimping pin Ø 1.0mm turned 7.010.971.001
Price per 1 bag (à 100 pieces)
CHF 182.05 excl. VAT, plus shipping costs
Item no:
7010971001
In stock: Available to order
Packaging ex works:
1 bag (100 pcs each)
Estimated delivery time:
1-2 weeks
Description
Contact: Crimp pin (m) 0.14 - 0.56 mm2 for Hummel contact inserts M27 Signal
Article number: 7.010.971.001
suitable for contact inserts: M27 signal
requires crimp sockets: 7010971002 (7.010.971.002)
(PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900901 (7.000.900.901), 7000900904 (7.000.900.904)
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 1.0 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm

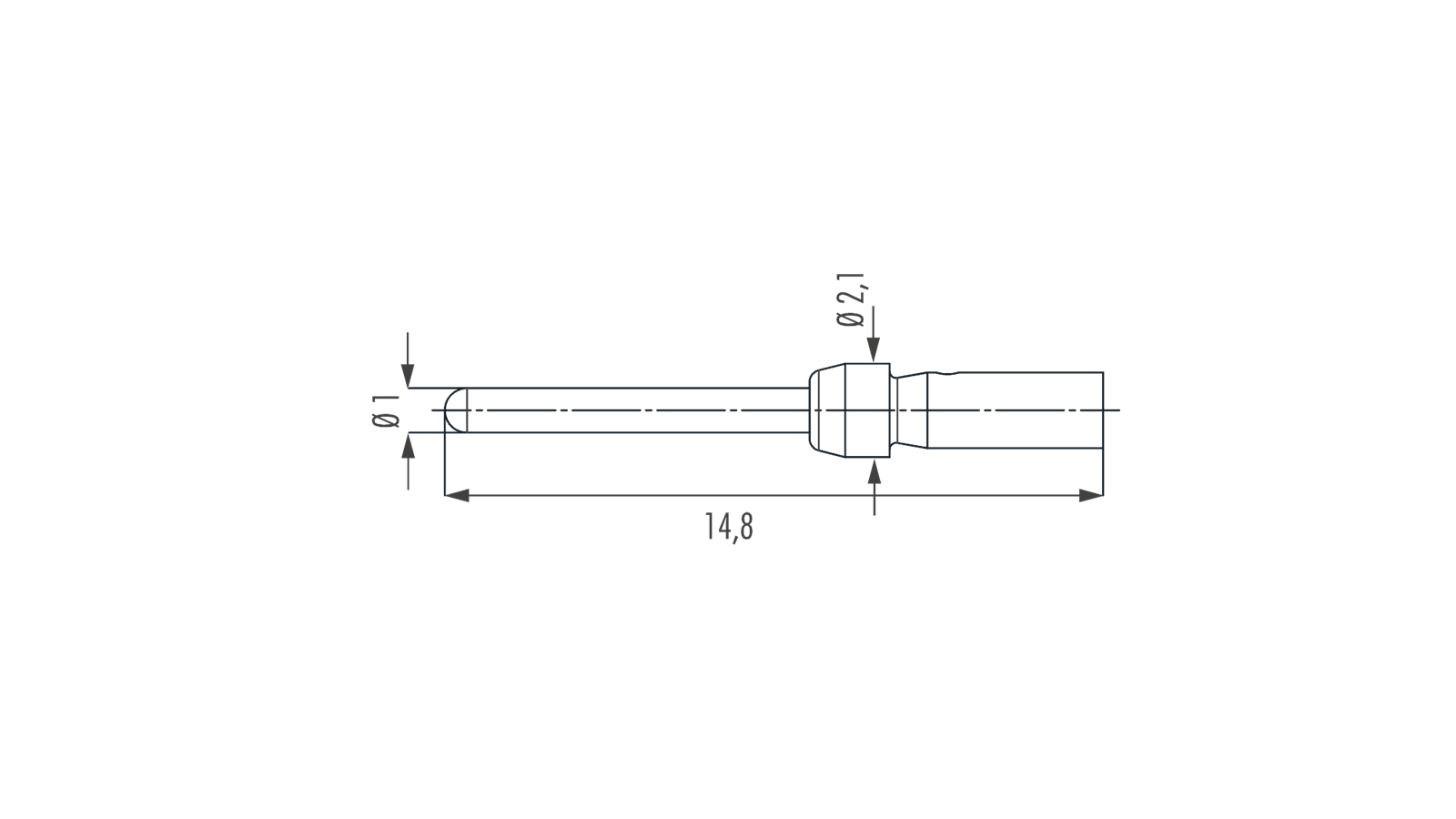

- Contact Ø data: 1.0 mm
- Length (L): 14.8 mm
- Connection range: 0,14 - 0,56 mm²
- Suitable crimping tool(s): 7000900901 (7.000.900.901), 7000900904 (7.000.900.904)
- Manufacturer: Hummel
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| Catalog excerpt Contacts | PDF(39.83 KB) |
|---|
Accessories
-
7010971002

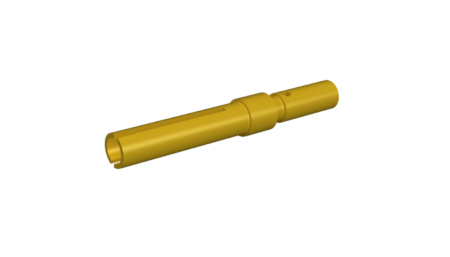

M27 crimp socket Ø 1.0mm, turned 7.010.971.002CHF 200.35Available to order
