Inserts & contacts M23

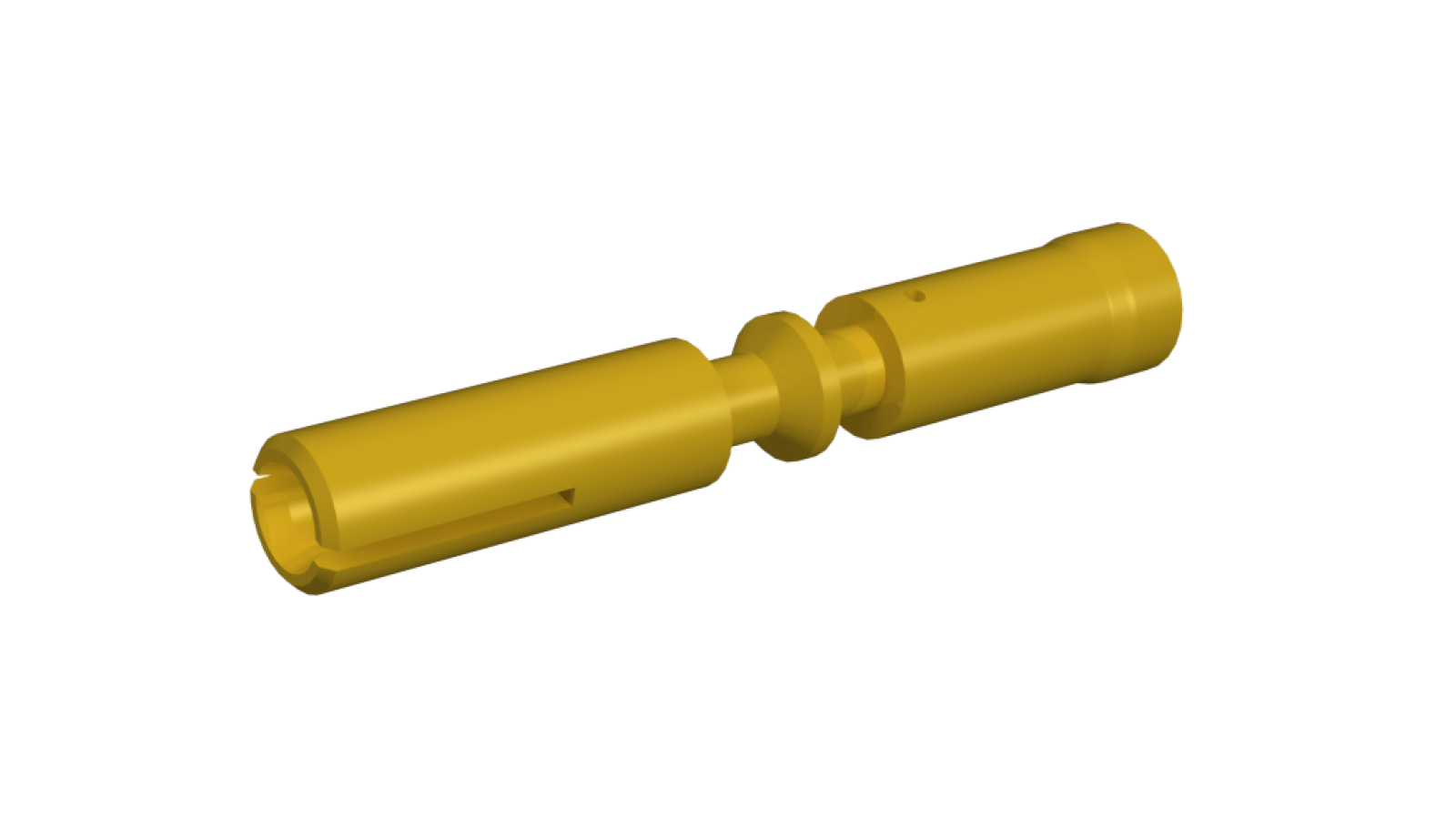

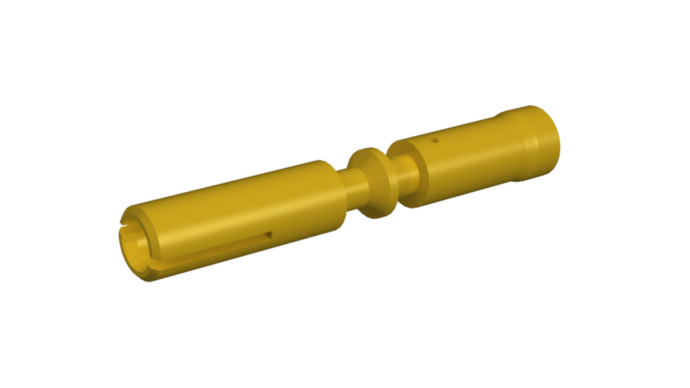

M23 crimp socket Ø 2mm, turned 7.010.942.012
Price per 1 bag (à 100 pieces)
CHF 141.80 excl. VAT, plus shipping costs
Item no:
7010942012
Stock level:33 Available immediately
Packaging ex works:
1 bag (100 pcs each)
Description
Contact: Crimp socket (f) 2.5 - 4 mm2 for Hummel contact inserts M23 power, M23 hybrid
Article number: 7.010.942.012
suitable for contact inserts: M23 power
requires crimping pins: 7010942011 (7.010.942.011)
(PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900901 (7.000.900.901 )
Technical data
- Connection type: Crimping
- Application: Socket
- Crimp contact: Crimp socket power 2 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø power: 2mm

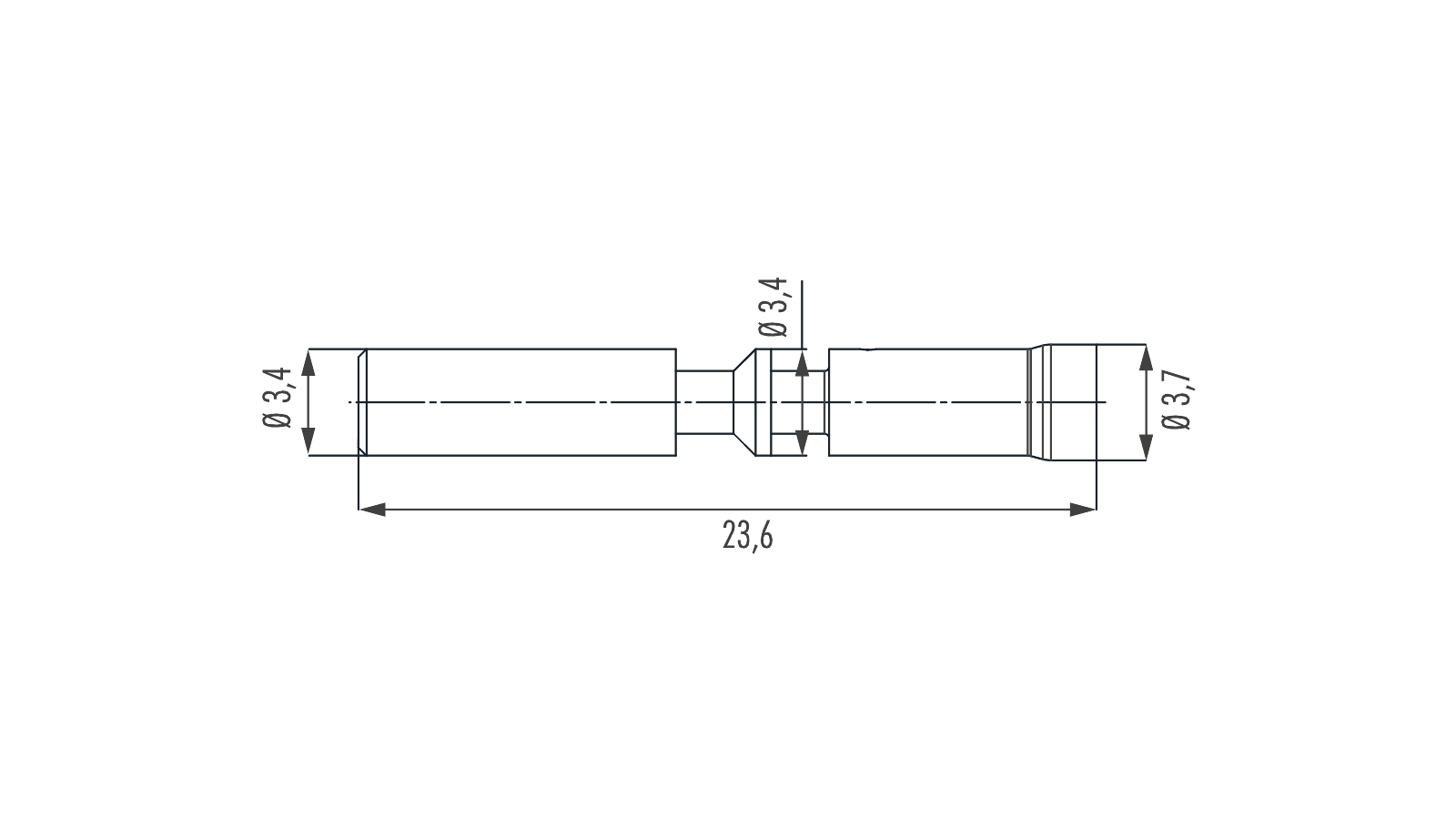

- Length (L): 23.6 mm
- Connection range: 2,5 - 4 mm²
- Suitable crimping pliers: 7000900901
- Manufacturer: Hummel
Subject to errors and technical changes
