Inserts & contacts M23

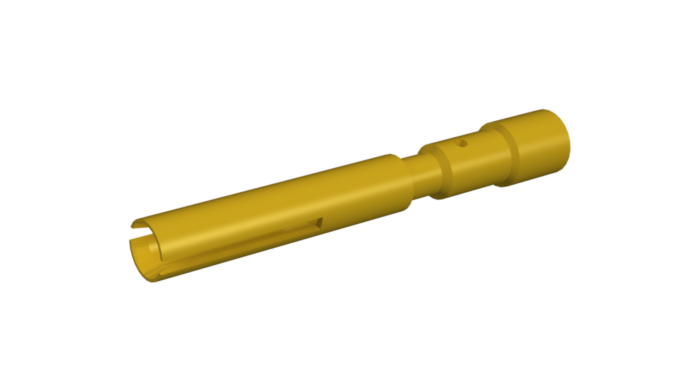

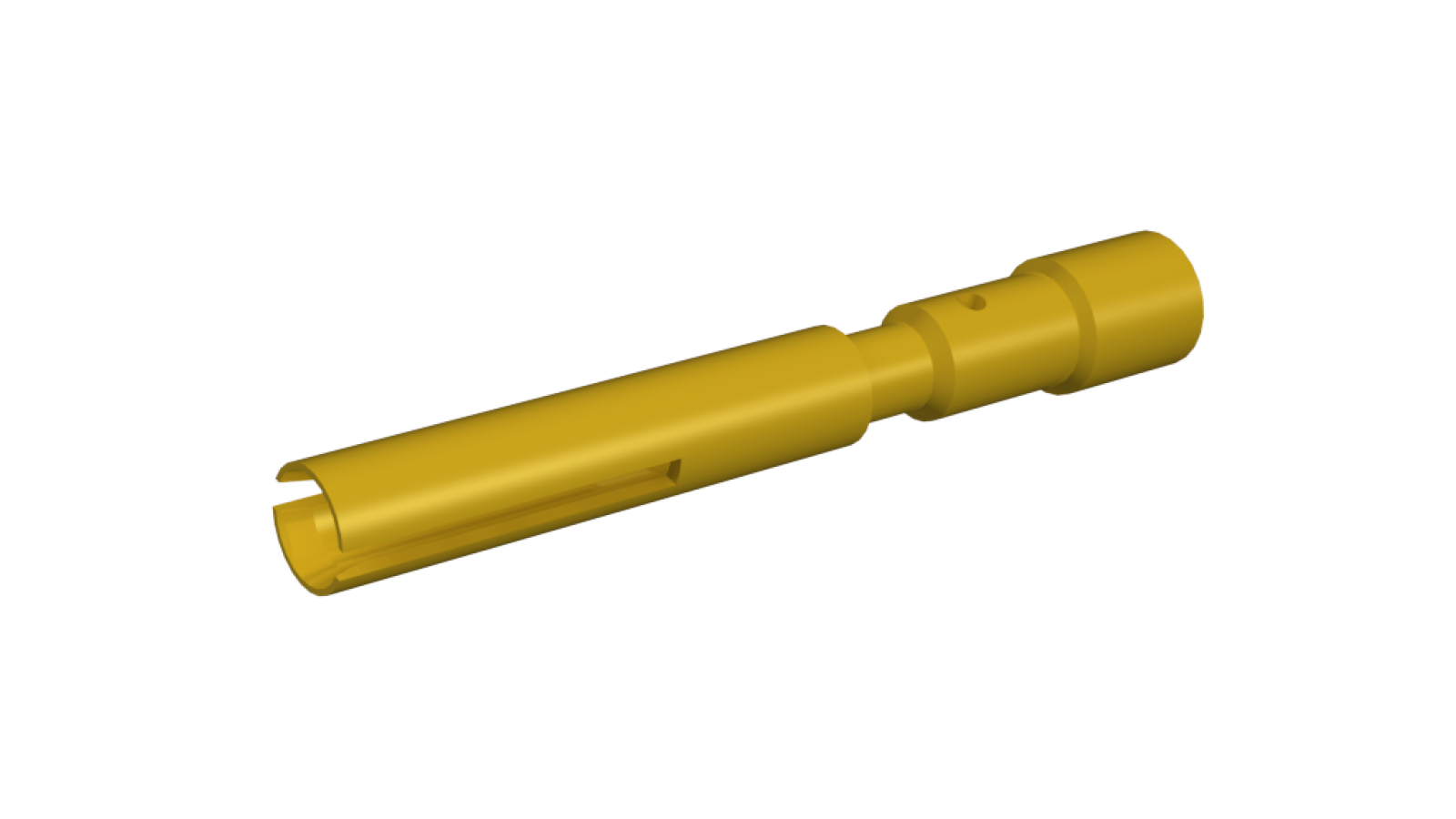

M23 crimp socket Ø 1.5mm, turned 7.010.901.512
Price per 1 bag (à 100 pieces)
CHF 119.00 excl. VAT, plus shipping costs
Item no:
7010901512
In stock: Available to order
Packaging ex works:
1 bag (100 pcs each)
Estimated delivery time:
1-2 weeks
Description
Contact: Crimp socket (f) 0.14 - 0.56 mm2 for Hummel contact inserts M23 Signal
Article number: 7.010.901.512
suitable for contact inserts: M23 signal
requires crimp pins: 7010901501 (7.010.901.501)
(PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)

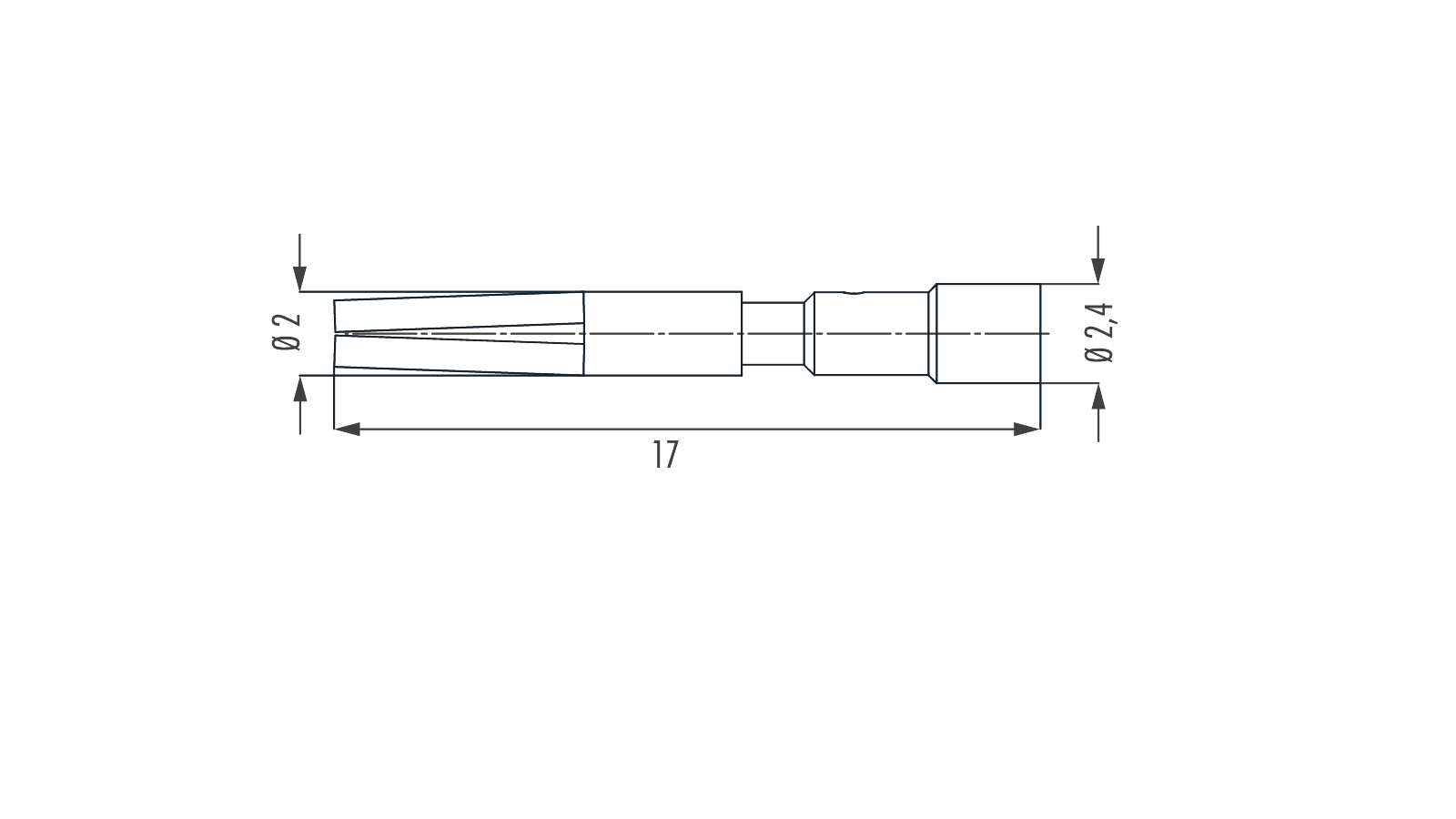

Technical data
- Connection type: Crimping
- Application: Socket
- Crimp contact: Crimp socket signal 1.5 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø signal: 1.5 mm
- Length (L): 17 mm
- Connection range: 0,14 - 0,56 mm²
- Suitable crimping pliers: 7000900904 (7.000.900.904)
- Manufacturer: Hummel
Subject to errors and technical changes
