Inserts & contacts M23
M23 signal contact insert 12-pin, manual solder connection
Sales price (VP) per 1 piece
CHF 11.35 excl. VAT, plus shipping costs
Item no:
7001912103
Stock level:153 Available immediately
Packaging ex works:
25 pcs
Description
Hummel pin insert - M23 signal 12-pin, manual solder connection
.
Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Soldering
- Number of poles: 12

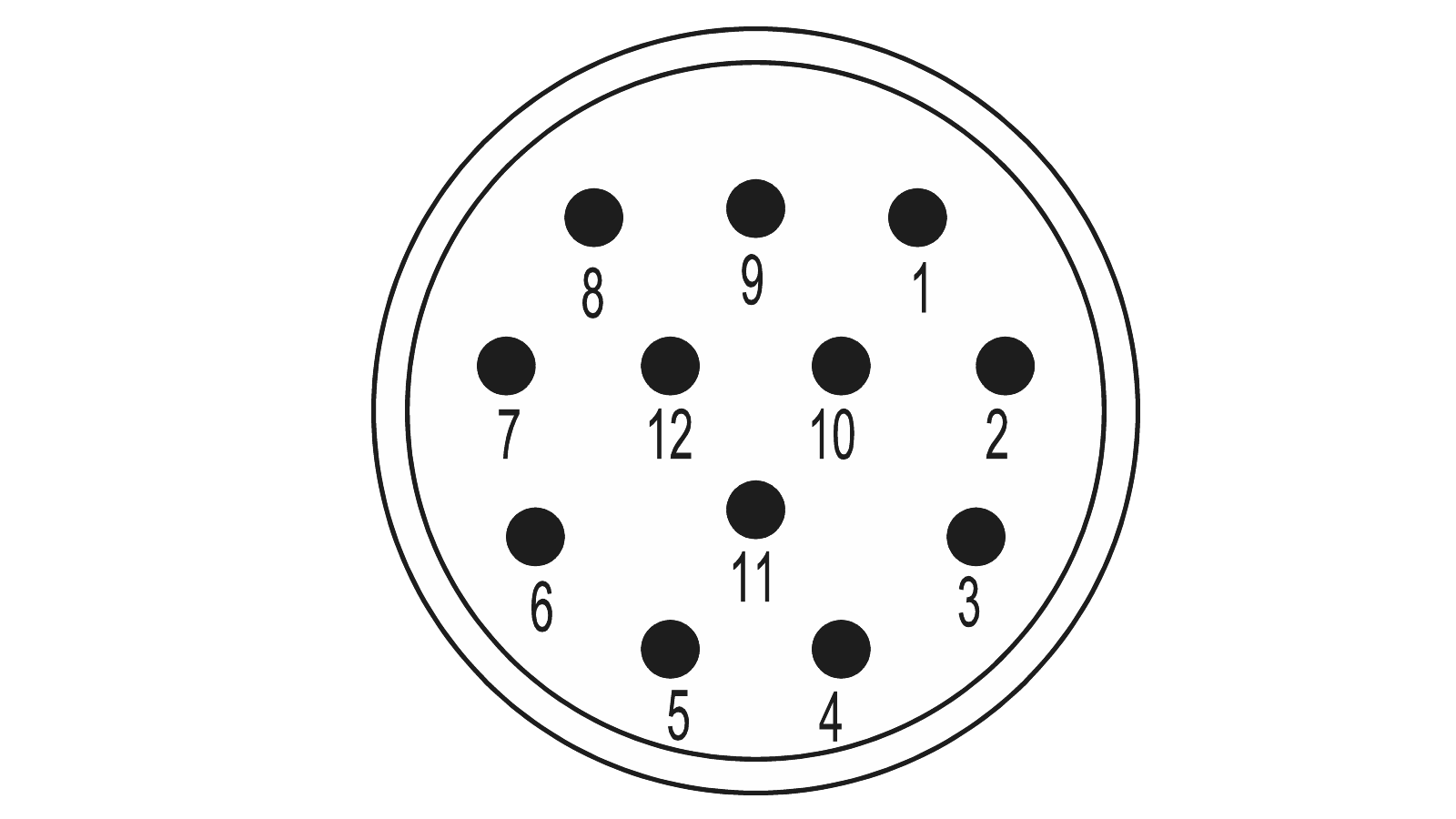

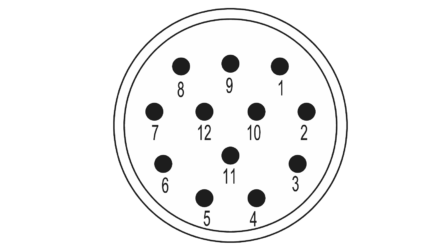

- Pole image: 12
- Direction of rotation: Standard
- Use: Pen
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Signal: 12
- Contact Ø signal: 1 mm
- Rated current signal: 8 A
- Rated voltage for pollution degree 3 Signal: 200 V~
- Test voltage signal: 840 V~
- Insulation resistance signal: > 10^8 Ω
- max. contact resistance signal: 3 mOhm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
Subject to errors and technical changes
