M23 signal contact insert (m) 9-pin (8+1), crimp insert without contacts

Name: M23 Signal contact insert (m) 9-pin (8+1), crimp insert without contacts - Simpex Electronic AG
Brand: Hummel
SKU: 7004981101
Price: 2.75 CHF
Availability: InStock

Sales price (VP) per 1 piece

CHF 2.75 excl. VAT, plus shipping costs

Item no: 7004981101

Stock level:20 Available immediately

Packaging ex works: 25 pcs

Recommend:

Delivery time request Print PDF

Description

Hummel pin insert - M23 signal 9-pin (8+1), crimp insert without contacts
.
Other, not published HUMMEL products and versions on request.

Technical data

Connection type: Crimping
Number of poles: 9

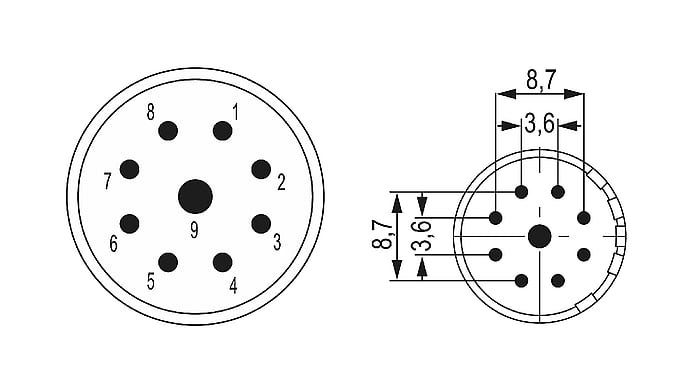

Pole image: 8+1
Direction of rotation: Counter-rotation
Use: Pen
Color contact insert: white
Insulator material: PA 6, PBT
Number of contacts Signal: 8
Number of contacts Power: 1
Contact Ø signal: 1 mm
Contact Ø power: 2 mm
Signal connection cross-section: 0.75 - 2.5 mm²
Rated current signal: 8 A
Rated current power: 20 A
Rated voltage for pollution degree 3 Signal: 200 V~
Rated voltage for pollution degree 3 Power: 200 V~
Test voltage signal: 1500 V~
Test voltage power: 1500 V~
Insulation resistance signal: > 10^8 Ω
Insulation resistance Power: > 10^8 Ω
max. contact resistance signal: 3 mOhm
Max. contact resistance power: 3 mOhm
Temperature range: -40°C...+125°C
Degree of soiling: 3
Flammability: V-0 (UL 94)

Subject to errors and technical changes

Additional information

LEDs

Manufacturer	Hummel

Product	Crimp insert
Nominal current (A)	8, 20
Nominal voltage (V)	600
Degree of soiling	3
Certificates	CSA, UL
Temperature range	-40…+125°C
Number of poles	9
Connection cross-section (mm2)	0.75...2.5
