Inserts & contacts M23

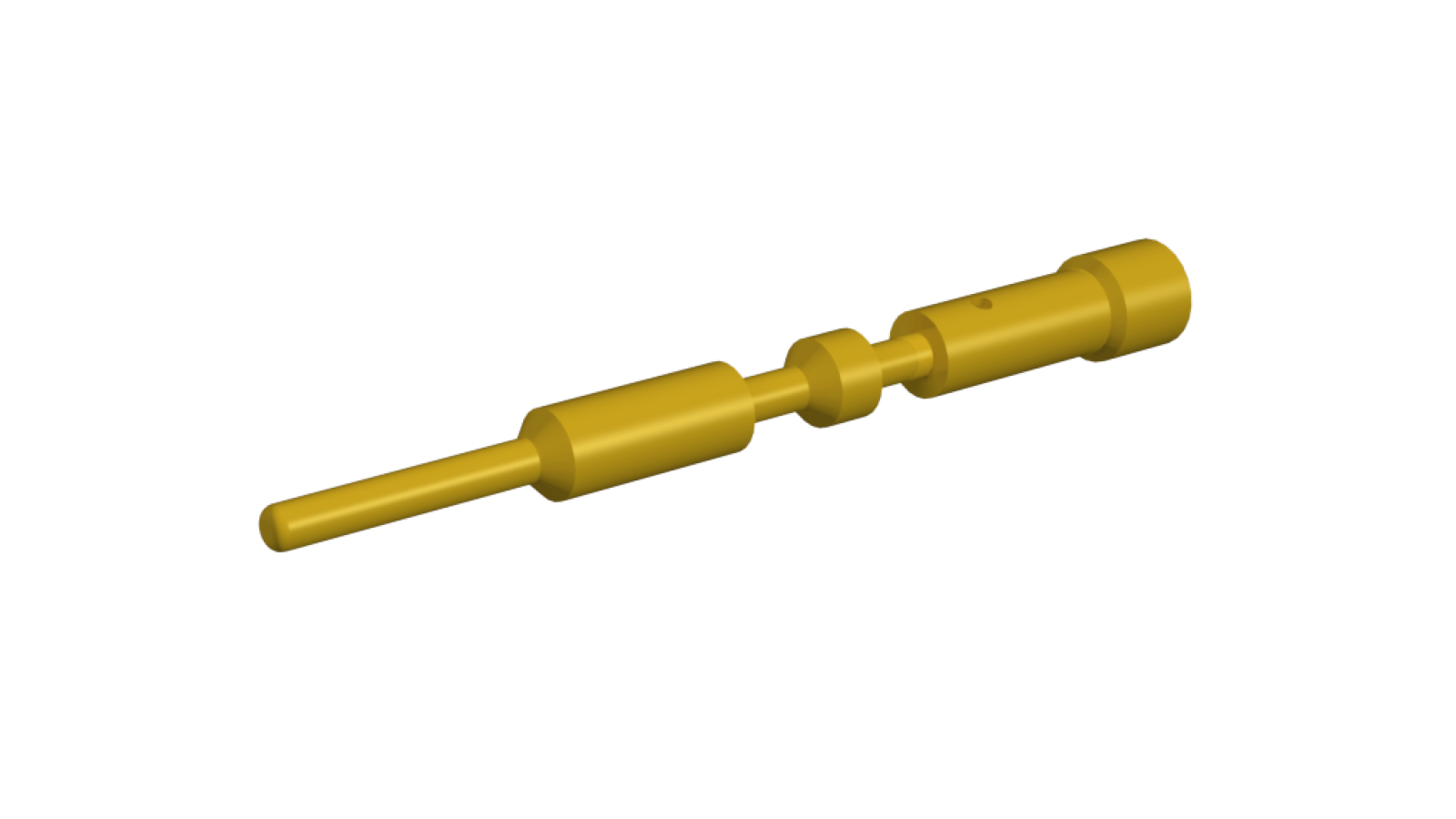

M23 crimping pin Ø 1.0mm, turned 7.010.941.021
Price per 1 bag (à 100 pieces)
CHF 111.05 excl. VAT, plus shipping costs
Item no:
7010941021
In stock: Available to order
Packaging ex works:
1 bag (100 pcs each)
Estimated delivery time:
1-2 weeks
Description
Contact: Crimp pin (m) 0.75 - 1.5 mm2 for Hummel contact inserts M23 power, M23 hybrid
Article number: 7.010.941.021
suitable for contact inserts: M23 power
requires crimp sockets: 7010941022 (7.010.941.022)
(PU 1 bag of 100 pieces)
suitable crimping pliers:
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 1.0 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø data: 0.6 mm

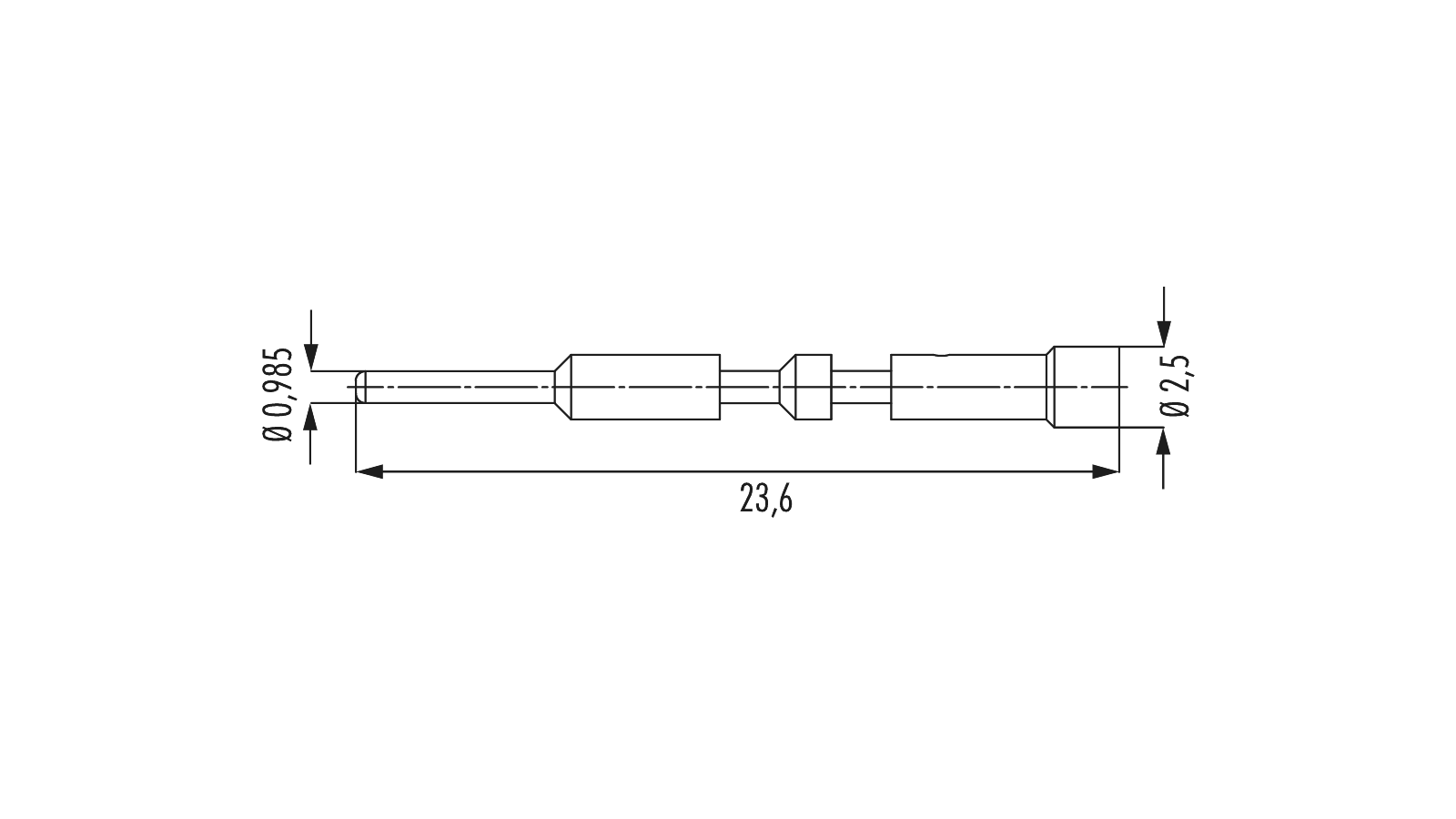

- Length (L): 23.6 mm
- Connection range: 0,75 - 1,5 mm²
- Suitable crimping pliers: 7000900901 (7.000.900.901)
- Manufacturer: Hummel
Subject to errors and technical changes
