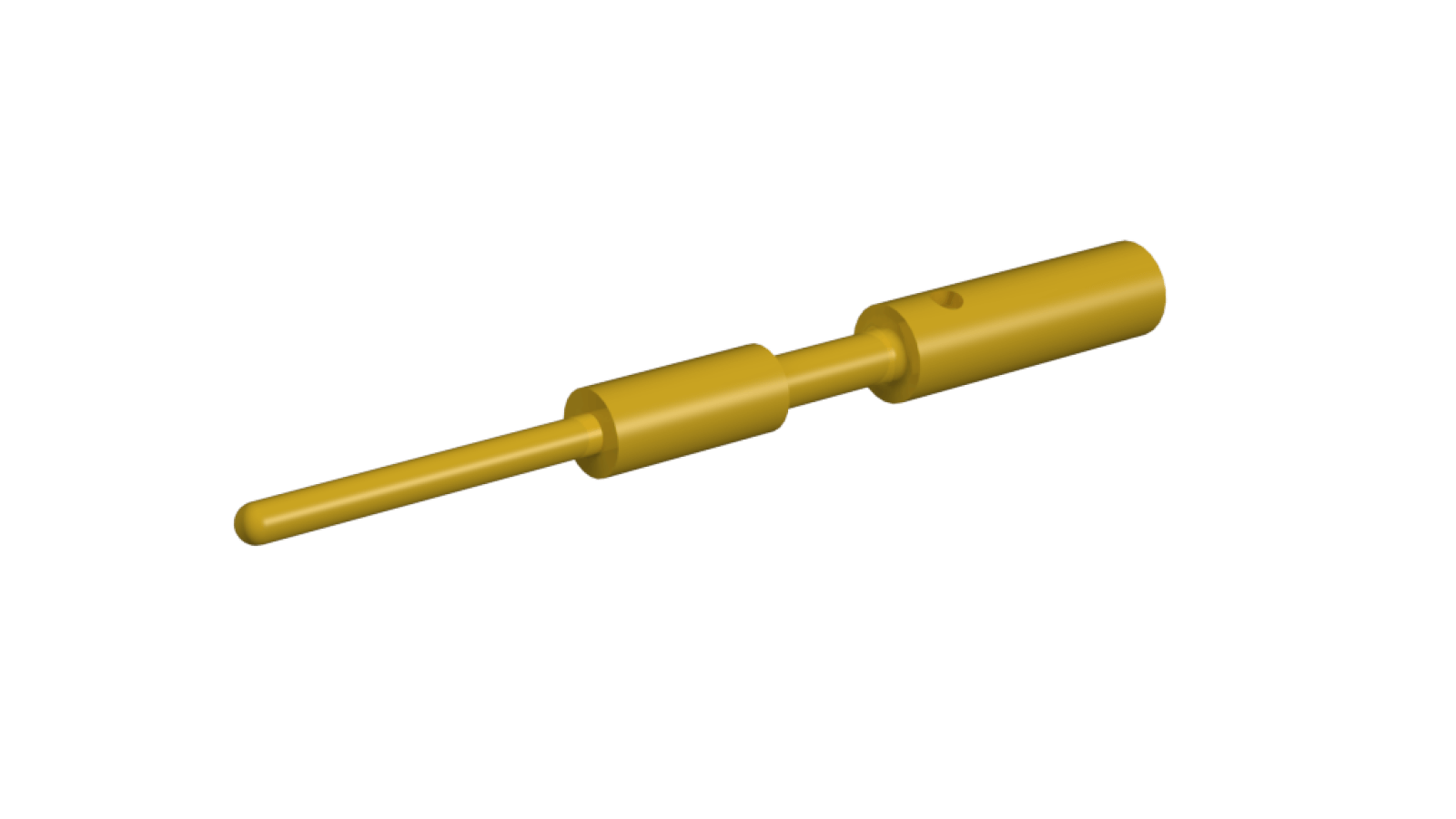

Inserts & contacts M23
M23 crimping pin Ø 0.6mm, turned 7.010.980.641
Price per 1 bag (à 100 pieces)
CHF 45.40 excl. VAT, plus shipping costs
Item no:
7010980641
In stock: Available to order
Packaging ex works:
1 bag (100 pcs each)
Estimated delivery time:
1-2 weeks
Description
Contact: Crimp pin (m) 0.08 - 0.34 mm2 for Hummel contact inserts M23 power, M23 hybrid
Article number: 7.010.980.641
suitable for contact inserts: M23 power
requires crimp sockets: 7010980602 (7.010.980.602)
(PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900907 (7.000.900.907)

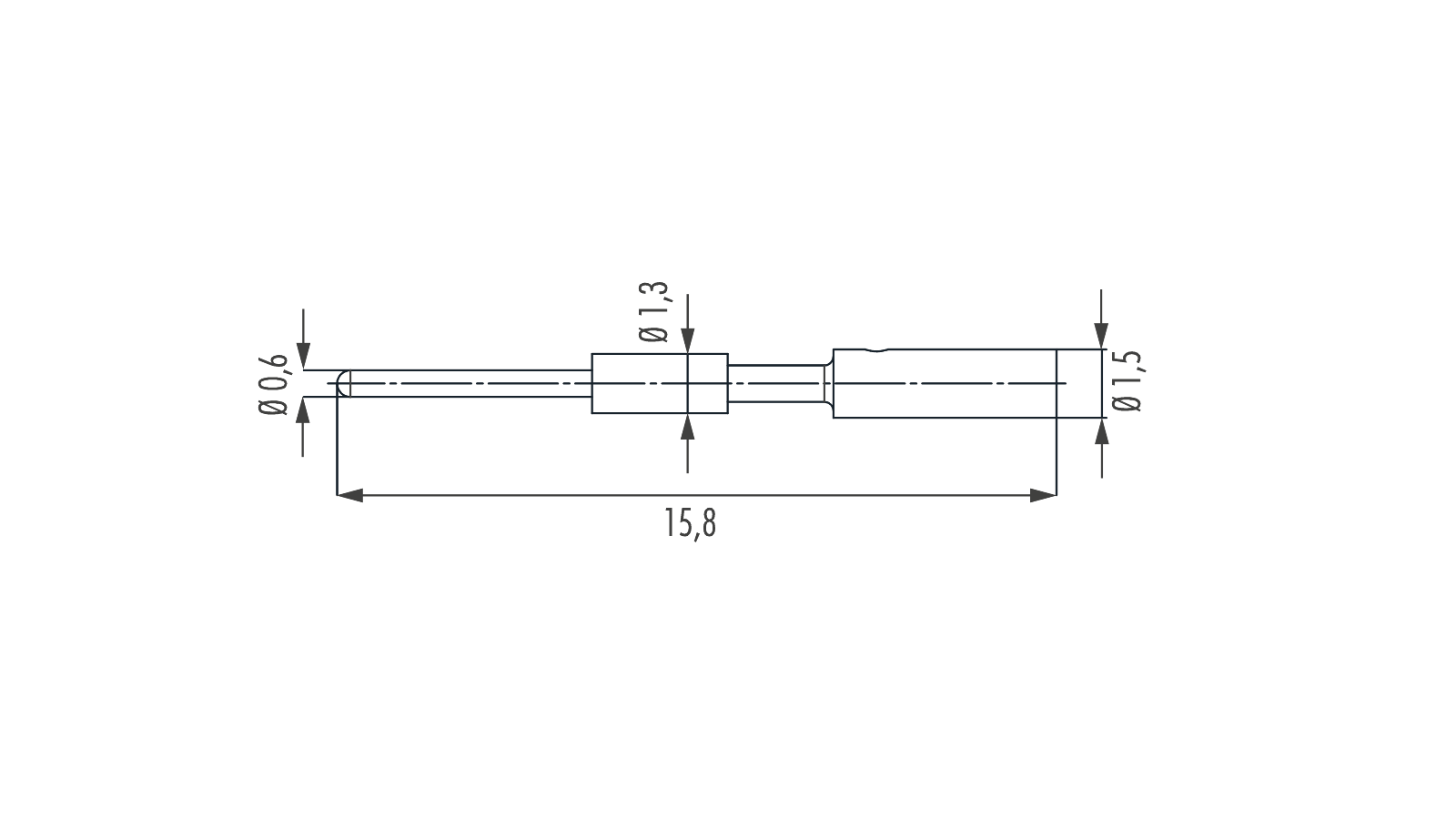

Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 0.6 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø data: 0.6 mm
- Length (L): 25.1 mm
- Connection range: 15.8 mm
- Suitable crimping pliers: 7000900907
- Manufacturer: Hummel
Subject to errors and technical changes
