Inserts & contacts M23

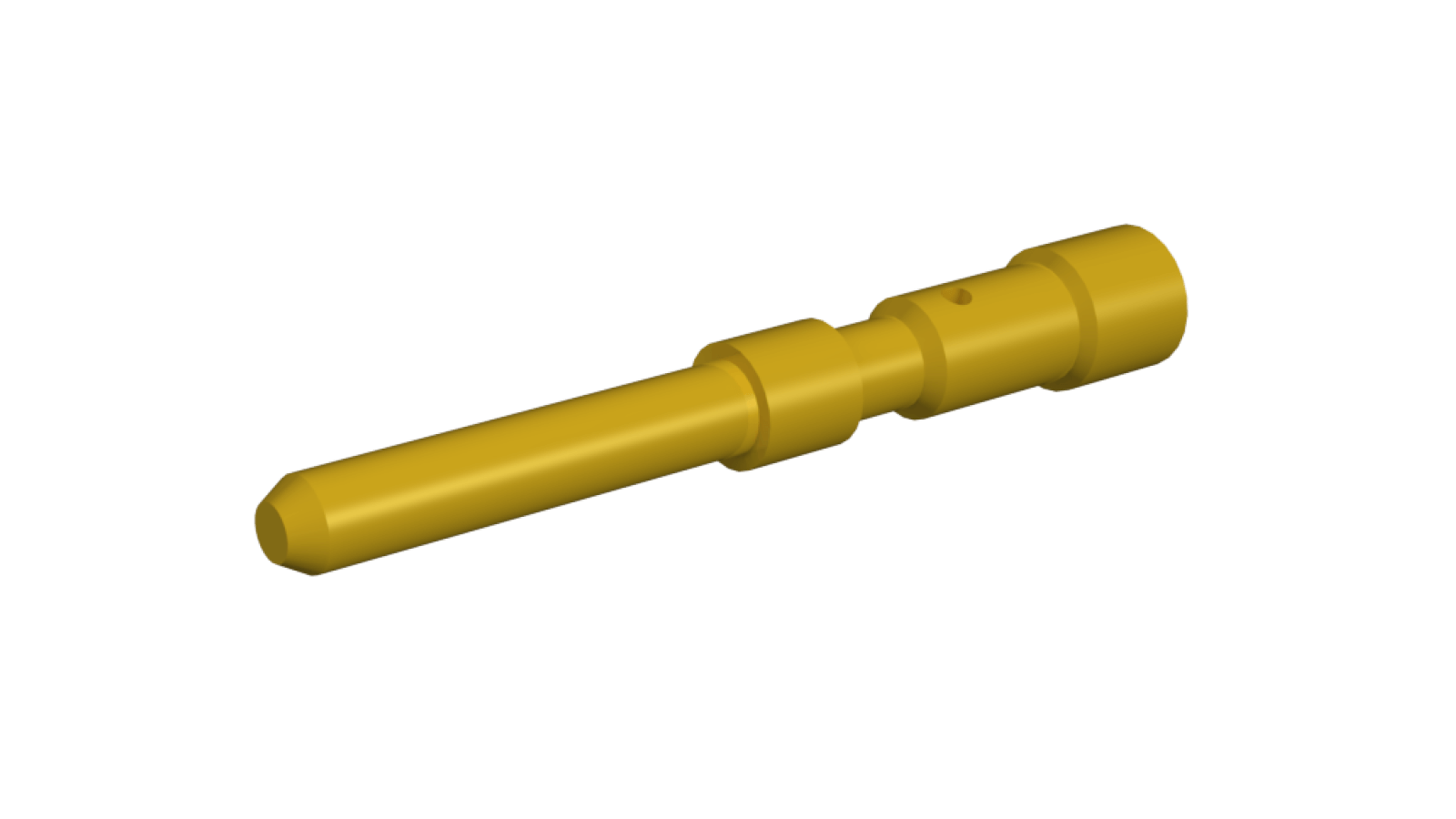

M23 crimping pin Ø 1.5mm, turned 7.010.901.501
Price per 1 bag (à 100 pieces)
CHF 90.75 excl. VAT, plus shipping costs
Item no:
7010901501
Stock level:6 Available immediately
Packaging ex works:
1 bag (100 pcs each)
Description
Contact: Crimp pin (m) 0.14 - 1.0 mm2 for Hummel contact inserts M23 Signal
Article number: 7.010.901.501
suitable for contact inserts: M23 signal
requires crimp sockets: 7010901512 (7.010.901.512), 7010901502 (7.010.901.502)
(PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 1.5 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm

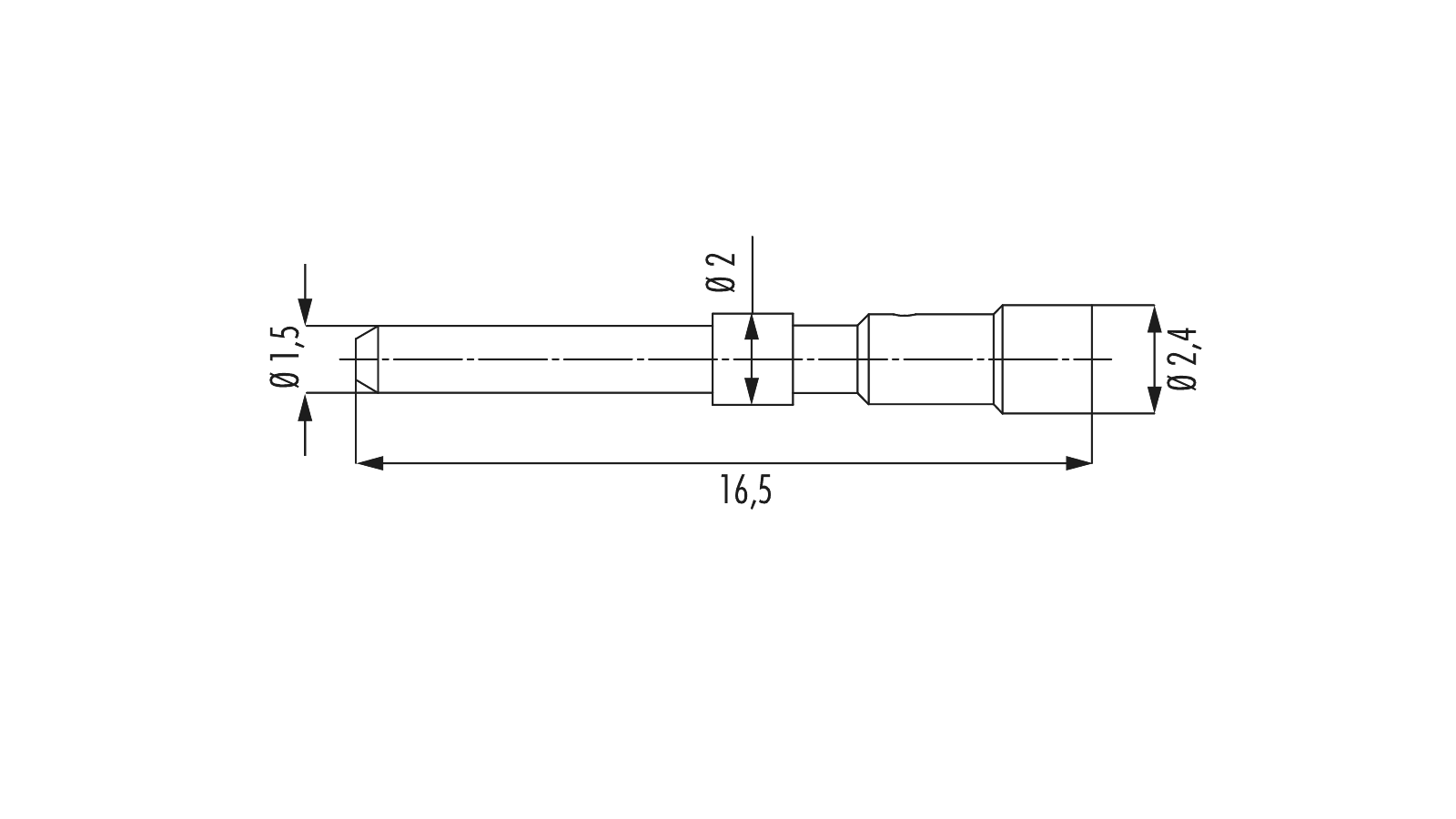

- Contact Ø data: 1.5 mm
- Length (L): 16.5 mm
- Connection range: 0,14 - 1 mm²
- Suitable crimping pliers: 7000900904 (7.000.900.904)
- Manufacturer: Hummel
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Catalog excerpt Contacts M23 Signal | PDF(69.96 KB) |
|---|
