Inserts & contacts M23

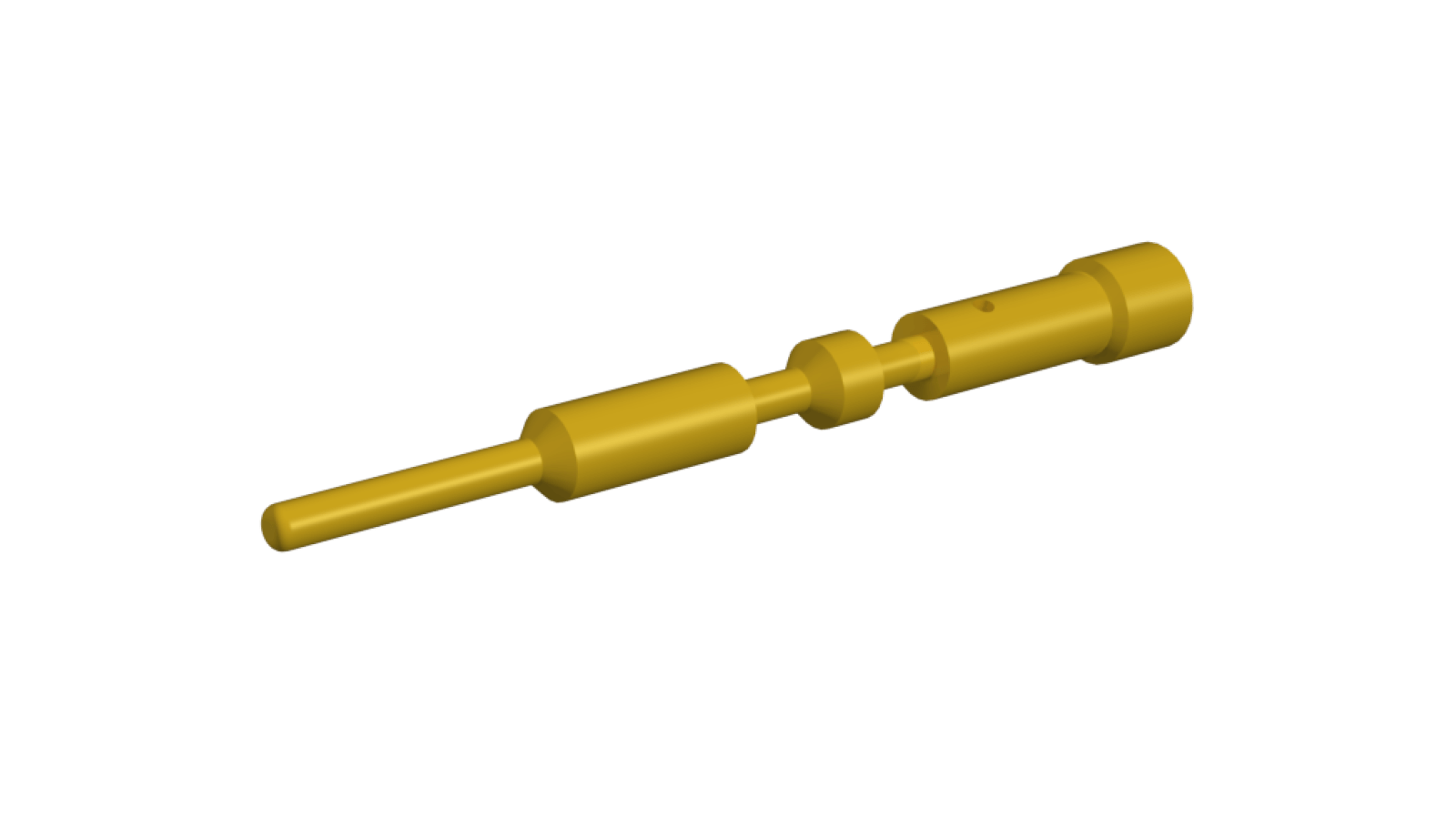

M23 crimping pin Ø 1.0mm, turned 7.010.941.001
Price per 1 bag (à 100 pieces)
CHF 49.35 excl. VAT, plus shipping costs
Item no:
7010941001
Stock level:3 Available immediately
Packaging ex works:
1 bag (100 pcs each)
Description
Contact: Crimp pin (m) 0.14 - 1.0 mm2 for Hummel contact inserts M23 power, M23 hybrid
Article number: 7.010.941.001
suitable for contact inserts: M23 power
requires crimp sockets: 7010941002 (7.010.941.002)
(PU 1 bag of 100 pieces)
suitable crimping pliers:
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 1.0 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø data: 0.6 mm

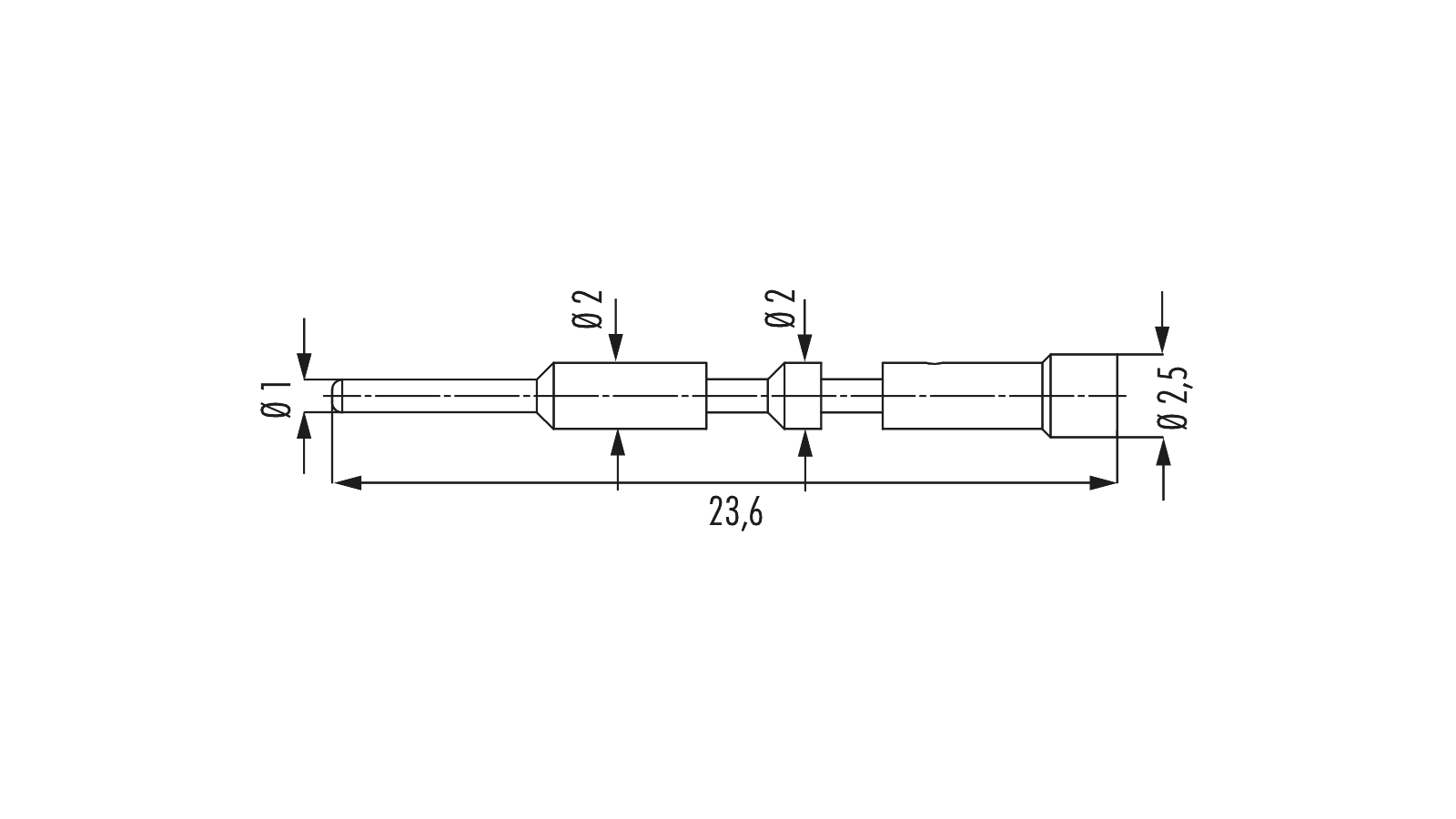

- Length (L): 23.6 mm
- Connection range: 0,14 - 1 mm²
- Suitable crimping pliers: 7000900901 (7.000.900.901)
- Manufacturer: Hummel
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Catalog excerpt Contacts | PDF(60.27 KB) |
|---|
Accessories
-
7010941002
M23 crimp socket Ø 1.0mm, turned 7.010.941.002CHF 69.753 Available immediately
