Inserts & contacts M23
M23 crimp socket Ø 1.0mm, turned 7.010.901.022
Price per 1 bag (à 100 pieces)
CHF 130.60 excl. VAT, plus shipping costs
Item no:
7010901022
Stock level:3 Available immediately
Packaging ex works:
1 bag (100 pcs each)
Description
Contact: Crimp socket (f) 0.75 - 1.5 mm2 for Hummel contact inserts M23 Signal
Article number: 7.010.901.022
suitable for contact inserts: M23 signal
requires crimp pins: 7010901021 (7.010.901.021)
(PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)
Technical data
- Connection type: Crimping
- Application: Socket
- Crimp contact: Crimp socket signal 1.0 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø signal: 1.0 mm
- Length (L): 16.5 mm
- Connection range: 0,75 - 1,5 mm²
- Suitable crimping pliers: 7000900904 (7.000.900.904)
- Manufacturer: Hummel
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Catalog excerpt | PDF(69.96 KB) |
|---|
Accessories
-
7010901021
M23 crimping pin Ø 1.0mm, turned 7.010.901.021CHF 79.804 Available immediately
Similar products
-
7010980602
M23 crimp socket Ø 0.6mm, turned 7.010.980.602CHF 65.85Available to order -
7010980641
M23 crimping pin Ø 0.6mm, turned 7.010.980.641CHF 45.40Available to order -
7010942002
M23 crimp socket Ø 2mm, turned 7.010.742.002CHF 116.859 Available immediately -
7004981102

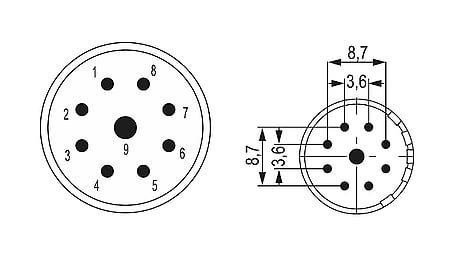

M23 signal contact insert (w) 9-pin (8+1), crimp insert without contactsCHF 2.8548 Available immediately -
