Inserts & contacts M23
M23 hybrid contact insert (w) 12-pin (4+4+3+PE) Crimp insert without contacts
Sales price (VP) per 1 piece
CHF 12.45 excl. VAT, plus shipping costs
Item no:
7084944102
In stock: Available to order
Packaging ex works:
5 pcs
Estimated delivery time:
1-2 weeks
Description
Hummel socket insert - M23 hybrid contact insert (w) 12-pin (4+4+3+PE) crimp insert without contacts
.
Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 12

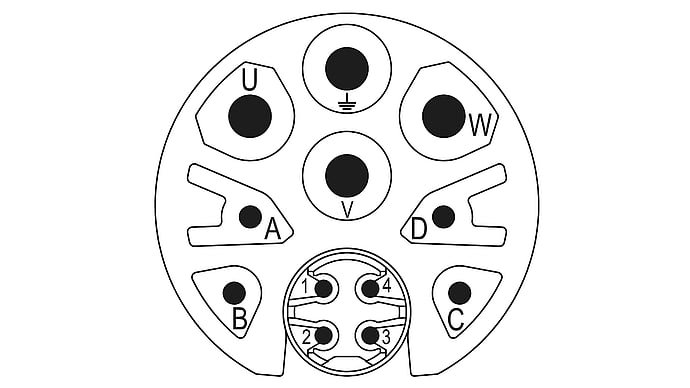

- Pole image: 4 + 4 + 3 + PE
- Coding: PE
- Application: Socket
- Ethernet insert color: white
- Color contact insert: blue
- Ethernet insert material: PBT
- Insulator material: PA 6, PBT
- Number of contacts Data: 4
- Number of contacts Signal: 4
- Number of contacts Power: 3
- Number of contacts PE: 1
- Contact Ø data: 0.6 mm
- Contact Ø signal: 1 mm
- Contact Ø power: 2 mm
- Connection cross-section data: 0.08 - 0.34 mm²
- Signal connection cross-section: 0.14 - 1.5 mm²
- Connection cross-section power: 0.75 - 4 mm²
- Rated current data: 2 A
- Rated current signal: 8 A
- Rated current power: 28 A
- Rated voltage for pollution degree 3 Data: 60 V~
- Rated voltage for pollution degree 3 Signal: 300 V~
- Rated voltage for pollution degree 3 Power: 600 V~
- Test voltage data: 500 V~
- Test voltage signal: 2500 V~
- Test voltage power: 4000 V~
- Insulation resistance data: > 10^6 Ω
- Insulation resistance signal: > 10^10 Ω
- Insulation resistance Power: > 10^13 Ω
- max. contact resistance data: 3 mOhm
- max. contact resistance signal: 3 mOhm
- Max. contact resistance power: 3 mOhm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
- Suitable data contacts: 7010980602
- Suitable signal contacts: 7010941002, 7010941022
- Suitable power contacts: 7010942002, 7010942012
- Suitable PE/FE contacts: 7010942002, 7010942012
Subject to errors and technical changes
