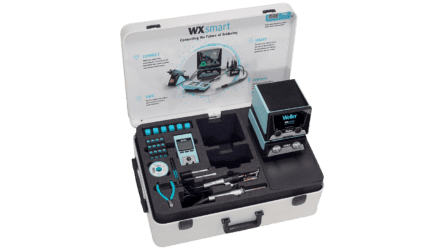

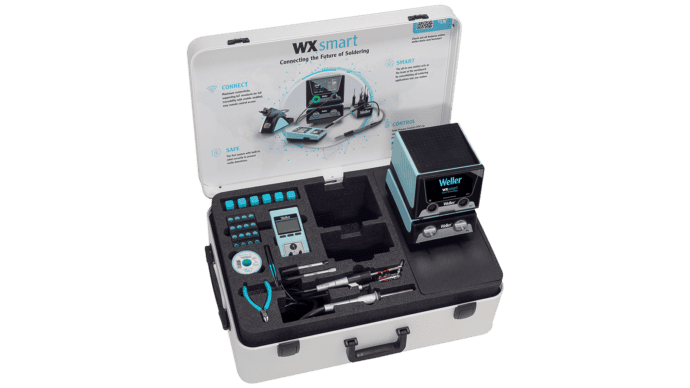

WXsmart demo case
Book a demo nowCHF 4'699.00 excl. VAT, plus shipping costs
Description
The combi soldering station for every soldering task and challenge.
The solution for all application requirements, whether pico, micro, high-performance soldering or soldering with tweezers, from component size 0402 to 1612 and beyond. Can be easily expanded to a complete rework station with the WXair rework module. The station has 300 W, 2 soldering channels, 1 air channel and 1 vacuum channel. A total of 16 tools can be connected to the WXsmart. No additional station is required.
- CONNECT - Maximum connectivity, support for all IoT standards for complete traceability and remote control via app
- SMART - This combination station is the brain of the workplace - various soldering applications are covered by one station. The platform supports Smart Soldering 4.0 with intelligent soldering tips and tools that save costs, time and space.
- CONTROL - Everything under control with Total Process Control (TPC) for your entire soldering process, from the tip to the station.
- SAFE - The first system with built-in cyber security to prevent costly downtime.
- Explainer videos: WXS - How to - YouTube
Tool
- Compatible soldering irons: WXMPS MS, WXUPS MS, WXMP, WXMP MS, WXPP, WXPP MS, WXUP MS, WXP 65, WXP 80, WXP 90, WXP 120, WXP 200
- Compatible soldering tweezers: WXMTS, WXMT, WXMT MS
- Compatible desoldering irons: WXDP 120, WXDV 120, WXHAP 200
- Compatible solder bath: WXSB 200

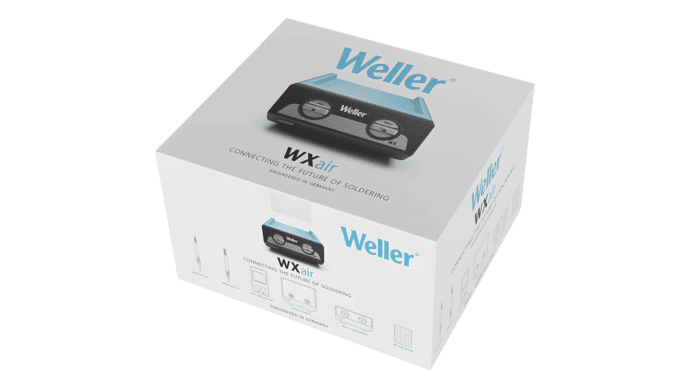

- WXAir rework module: WXair
Additional information
| Soldering stations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
Data sheets
| Technical data sheet_WXsmart | PDF(63.93 KB) |
|---|---|
| Operating instructions | PDF(12.7 MB) |
| Line Matrix | PDF(106.6 KB) |
| WXsmart brochure | PDF(3.53 MB) |
| Infosheet | PDF(421.07 KB) |
| Whats in the box | PDF(114.7 KB) |
