Soldering stations
WXS2020 - WXsmart/WXair Set 230 V
Book a demo nowCHF 2'242.00 excl. VAT, plus shipping costs
Item no:
0053456699
Stock level:1 Available immediately
Description
WXS 2020 rework set for every application. A new soldering set. Rework system with WXsmart station and WXair module for the most demanding tasks in the electronics, medical, aerospace and automotive industries. It offers the shortest heat-up and recovery times as well as complete process control from tip to station with the new intelligent tools. First-class connectivity, a user-friendly color touchscreen and cyber security complete the package. In combination with the WXair module, the WXsmart station becomes a complete rework station.
- Maximum efficiency: With an extremely fast heat-up time of just 7 seconds and an output of 150 W at 24 V, the WXUPS MS ensures uninterrupted work with maximum precision - ideal for the finest soldering applications.
- Perfect for demanding soldering applications: The WXUPS MS is suitable for high-performance applications with large component sizes from 1612 and above. The thermal core technology enables optimized heat transfer through the solder joint.
- Complete process control: Smart soldering tips with an individual serial number, smart tools for storing data parameters and a smart soldering station ensure complete process control and full traceability of the calibration history.
- Individually programmable: Up to 10 individually storable parameters per tool - incl. standby temperature and auto-off - for consistent soldering results.
- All-in-one soldering station: The WXsmart Station (300 W, 2 channels) enables the connection of up to 12 tools and is therefore suitable for pico, micro and high-performance applications.
- IT security & device protection: Modern TLS encryption, two-factor authentication and secure software updates protect against unauthorized access.
- ESD protection included: All components are fully ESD-safe - ideal for use in sensitive electronics environments.
- Explainer videos: WXS - How to - YouTube
Tips/tools
- tips: TO THE MATCHING TIPS
- Compatible soldering irons: WXMPS MS, WXUPS MS, WXMP, WXMP MS, WXPP, WXPP MS, WXUP MS, WXP 65, WXP 80, WXP 90, WXP 120, WXP 200
- Compatible soldering tweezers: WXMTS, WXMT, WXMT MS
- Compatible desoldering irons: WXDP 120, WXDV 120, WXHAP 200
- Compatible solder bath: WXSB 200
- Compatible heating plate: WXHP 120
- WXAir rework module: WXair

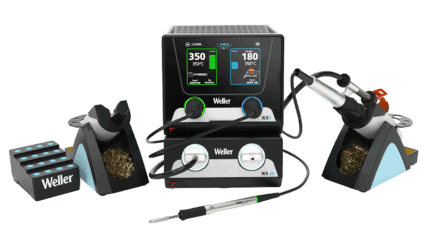

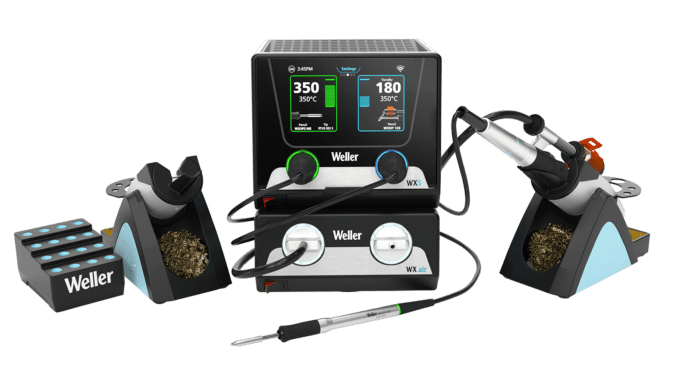

Scope of delivery
- WXsmart Supply unit, 300 W /230 V
- WxairWxair rework module
- WXUPS MSSoldering iron WXUPS MS 150 W, 24 V, (handpiece without soldering tip) for Active-Tip heating element technology
- RTUS 032 S MSRTUS Ultra soldering tip, conical Ø 0.4 mm, MIL-SPEC
- WXDP 120Desoldering iron 120 W, 24 V
- WSR 207Safety shelf for WXDP 120
- WSR 2002-in-1 safety shelf with brass wool and cleaning sponge
- WCTH: Soldering tip holder
- CH Mains cable for Switzerland
Additional information
| Soldering stations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
| Repair stations | ||||||||||||||
|
|
||||||||||||||
Data sheets
| Technical data sheet_WXsmart | PDF(63.93 KB) |
|---|---|
| Operating instructions | PDF(12.7 MB) |
| Line Matrix | PDF(106.6 KB) |
| WXsmart brochure | PDF(3.53 MB) |
| Infosheet | PDF(421.07 KB) |
