WXS2022 - WXsmart ULTRA/TWEEZERS Set 230 V
Book a demo nowCHF 1'757.00 excl. VAT, plus shipping costs
Item no:
0053458699
Stock level:1 Available immediately
Description
Weller WXsmart Ultra Set - Maximum performance for demanding soldering applications
High-performance rework set WXS 2022 for every application. A new soldering set. Optimized rework system for the most demanding tasks in the electronics, medical, aerospace and automotive industries. It offers the shortest heat-up and recovery times as well as complete process control from tip to station with the new intelligent tools, first-class connectivity, a user-friendly color touchscreen and cyber security complete the package.
- Maximum efficiency: Thanks to the active top technology (cartridge) with 150 W power and an extremely fast heat-up time of just 7 seconds, the WXsmart Ultra set enables uninterrupted work with maximum precision - ideal for the finest soldering applications.
- One hand, two families of tips: One soldering iron - two tip families: Pico for very fine, Micro for standard applications. No tool change necessary, maximum flexibility.
- Smart process control: Smart tips with serial numbers, stored parameters and complete traceability ensure maximum process reliability.
- Individually programmable: Up to 10 individually storable parameters per tool - incl. standby temperature and auto-off - for consistent soldering results.
- All-in-one soldering station: WXsmart station (300 W, 2 channels) for pico, micro and high-performance applications. Up to 12 tools can be connected.
- IT security & device protection: Modern TLS encryption, two-factor authentication and secure software updates protect against unauthorized access.
- ESD protection included: All components are fully ESD-safe - ideal for use in sensitive electronics environments.
- Explainer videos: WXS - How to - YouTube
Tips/tools
- tips: TO THE MATCHING TIPS
- Compatible soldering irons: WXMPS MS, WXUPS MS, WXMP, WXMP MS,
WXPP, WXPP MS, WXUP MS, WXP 65, WXP 80, WXP 90, WXP 120, WXP 200 - Compatible soldering tweezers: WXMTS, WXMT, WXMT MS
- Compatible desoldering irons: WXDP 120, WXDV 120, WXHAP 200
- Compatible solder bath: WXSB 200
- Compatible heating plate: WXHP 120
- WXAir rework module: WXair

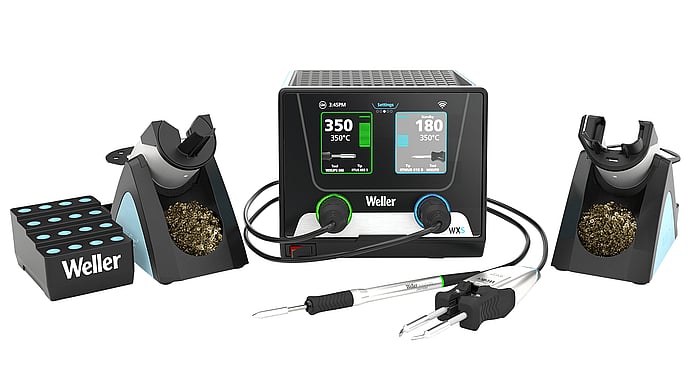

Scope of delivery
- WXsmart Supply unit, 300 W /230 V
- WXUPS MSSoldering iron WXUPS MS 150 W, 24 V, (handpiece without soldering tip) for Active-Tip heating element technology
- WXUTS SetSmart Ultra soldering and desoldering tweezers set including WXUTS desoldering tweezers 150 W, 24 V, RTWUS 015 B tip (2 x 75 W) and WSR 210 safety rest
- RTUS 032 S MSRTUS Ultra soldering tip, conical Ø 0.4 mm, MIL-SPEC
- WSR 2002-in-1 safety shelf with brass wool and cleaning sponge
- WCTH: Soldering tip holder
- CH Mains cable for Switzerland
Additional information
| Soldering stations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
Data sheets
| Technical data sheet_WXsmart | PDF(63.93 KB) |
|---|---|
| Operating instructions | PDF(12.7 MB) |
| Line Matrix | PDF(106.6 KB) |
| WXsmart brochure | PDF(3.53 MB) |
| Infosheet | PDF(421.07 KB) |
